The arc was there, but it felt tighter, more focused than anything I’d seen with TIG — almost like a pinpoint flame cutting straight through the metal. The bead came out narrow, clean, and surprisingly deep for the amperage I was running.
That’s when I started digging into How Does Plasma Welding Work, because this process clearly plays by a different set of rules.
In the shop, plasma welding isn’t something you just “figure out” by turning a few knobs. It uses a constricted arc forced through a small orifice, which creates higher energy density and much more control over the weld pool. That means deeper penetration, less distortion, and cleaner results — especially on precision work.
Understanding how it works matters if you’re dealing with thin materials, high-quality welds, or jobs where consistency is critical. Without that knowledge, it’s easy to misuse the process or miss out on what makes it so powerful.
I’ll break it down step by step — from arc formation to shielding gas and heat control — so you can actually understand what’s happening at the torch and use it to your advantage. Here’s the part most welders overlook.

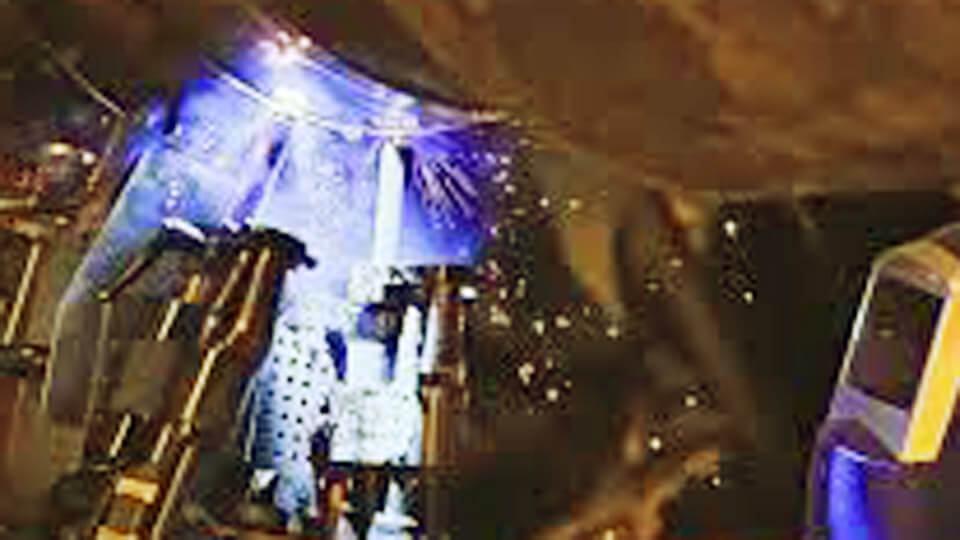

Image by thefabricator
Plasma Arc Generation: From Pilot Arc to Transferred Plasma Jet
The entire process begins inside the torch with a pilot arc.
Pilot Arc Initiation and Plasma Gas Ionization
A high-frequency spark or DC pilot current (typically 5–20 A) strikes between the tungsten electrode and the inner copper nozzle. Pure argon plasma gas flows through this gap at 0.5–4.0 l/min, ionizes, and exits the orifice as a conductive plasma column reaching 20,000–28,000 °C.
This pilot arc stays lit continuously in most systems, guaranteeing reliable main-arc transfer even on dirty or oxide-covered material.
Constricting Nozzle Physics and Energy Density
The nozzle bore (0.8–3.2 mm diameter) forces the plasma through a restriction. Arc pressure rises sharply and the column diameter shrinks to 1–2 mm. Energy density jumps to 40–50 kA/cm² versus TIG’s 10–15 kA/cm². This focused jet melts metal faster and drives deeper penetration with less total heat input to the part.
Figure: Schematic of plasma arc welding torch showing constricted plasma stream exiting the orifice while shielding gas protects the pool.
Electrode Setback and Arc Stiffness Control
The tungsten electrode sits recessed 1.5–3.0 mm behind the nozzle face. Greater setback increases constriction and arc pressure—exactly what you dial for keyhole mode. Too little setback and the arc softens into melt-in mode; too much and you risk double arcing and nozzle damage.
Plasma Welding Modes: Melt-In vs Keyhole Decision Framework
PAW operates in three practical current regimes. Choosing the right one determines single-pass capability and distortion levels.
Microplasma (0.1–15 A) for Foil and Precision Work
Use 0.1–15 A with 0.2–0.6 l/min plasma gas on material down to 0.1 mm. The arc remains soft and columnar even at 20 mm arc length—ideal for sensor diaphragms, bellows, or thin-wall tubing where TIG would wander.
Conventional Melt-In Mode (15–100 A)
Set plasma gas low (0.5–1.5 l/min) and minimal electrode setback. The arc behaves like a stiff TIG arc but with far better stability and no tungsten contamination risk. Travel speeds reach 500–1200 mm/min on 1–3 mm stainless—30–50 % faster than TIG with cleaner bead profiles.
Keyhole Mode (>100 A) for Single-Pass Full Penetration
Increase plasma gas to 2.0–4.0 l/min and setback to maximum for the nozzle size. The plasma jet literally punches a vapor cavity through the plate; molten metal flows around the sides and freezes behind the torch.
On 6–8 mm stainless or titanium you achieve full penetration at 150–350 mm/min in one pass—impossible with standard TIG without multiple layers and massive distortion.
Side-by-side comparison: plasma constricted arc (left) versus open TIG arc (right). Note the narrow, columnar plasma jet versus the flared TIG arc.
Critical Plasma Welding Parameters and Real-World Tables
Success hinges on four interdependent variables: current, plasma gas flow, nozzle size, and electrode setback. Use these proven ranges as starting points.
Typical Parameters for Stainless Steel (DCEN, Argon Plasma / Argon Shield)
| Thickness (mm) | Current (A) | Plasma Gas (l/min) | Shield Gas (l/min) | Travel Speed (mm/min) | Nozzle Bore (mm) | Electrode Setback (mm) |
|---|---|---|---|---|---|---|
| 0.5–1.0 | 20–45 | 0.4–0.8 | 8–12 | 400–800 | 0.8–1.2 | 1.0–1.5 |
| 1.6–3.0 | 60–110 | 0.8–1.5 | 12–18 | 250–500 | 1.2–1.7 | 1.5–2.0 |
| 4.0–6.0 | 120–220 | 2.0–3.5 | 15–25 | 150–300 | 2.0–2.8 | 2.0–2.8 |
| 6.0–8.0 (keyhole) | 180–350 | 3.0–4.5 | 20–30 | 120–250 | 2.5–3.2 | 2.5–3.2 |
Adjust ±10 % for titanium (lower plasma flow) or aluminum (use variable polarity). Pulse current at 1–20 Hz with 30–70 % background dramatically improves keyhole stability on varying joint gaps.
Plasma Gas Flow and Nozzle Sizing Effects
Higher flow = stronger jet = deeper keyhole. But exceed the nozzle rating and you erode the orifice in minutes. Always match nozzle bore to current: 100 A needs ~1.7 mm bore; 300 A needs 2.8–3.2 mm.
Torch Stand-Off and Angle
Maintain 3–6 mm standoff. At 8 mm+ the arc spreads and loses keyhole. 10–15° push angle keeps the plasma jet leading the pool for best wetting.
Plasma Welding Equipment: What Actually Matters for Repeatable Results
Torch Design Choices
Manual torches (75–150 A) suit repair and short runs. Mechanized torches with 300–500 A capacity and AVC (arc voltage control) deliver production keyhole welds on pipe or vessels. Water cooling is mandatory above 100 A continuous.
Power Source Requirements
Constant-current DCEN for steel and titanium. Variable-polarity (VP) or square-wave AC for aluminum—alternating EP cleaning pulses every 10–50 ms removes oxide without losing keyhole. Modern inverters with 20 kHz pulsing give the tightest control.
Consumables Strategy
2 % thoriated or lanthanated tungsten: 2.4 mm for <150 A, 3.2–4.8 mm above. Never let filler rod touch the electrode—plasma torches tolerate far less contamination than TIG. Replace nozzles at first sign of ovality; one bad orifice destroys arc symmetry.
Plasma vs TIG torch comparison showing recessed electrode and dual-gas paths in plasma.
Material-Specific Techniques That Deliver Pro Results
Austenitic Stainless Steel
Argon plasma + 5–10 % hydrogen shielding boosts thermal conductivity and penetration. Keyhole on 6 mm 304/316 at 220 A / 3.2 l/min plasma gives 200 mm/min with <1 mm distortion across a 300 mm plate.
Titanium Alloys (Ti-6Al-4V)
Pure argon only—hydrogen embrittles. Use slightly lower plasma flow (2.5–3.5 l/min) and trailing shield or full purge chamber. Keyhole mode replaces multi-pass TIG and cuts heat input by 60 %, preserving base metal properties in aerospace ducting.
Aluminum with Variable Polarity Plasma (VPPA)
Square-wave polarity reversal (50–200 ms EP) cleans oxide while DCEN phase maintains keyhole. 5083 or 6061 plate up to 12 mm welds in single pass at 150–250 A—zero porosity when back-purged properly. This is the process NASA and Boeing rely on for cryogenic tanks.
Process Variables That Control Weld Quality
Keyhole stability depends on balanced arc pressure versus surface tension. Too little plasma flow and the keyhole collapses, trapping gas → porosity. Too much and undercut appears on the crown. Monitor arc voltage: stable keyhole shows 28–32 V; collapse drops voltage suddenly.
Gas selection directly changes arc temperature. Pure argon gives baseline performance. Ar + 5–15 % H₂ for stainless and nickel alloys raises temperature ~1000 °C and improves wetting. Never use hydrogen on titanium or aluminum.
Real-World Decision Framework: Plasma vs TIG vs Laser
Choose plasma when you need:
- Single-pass full penetration >4 mm
- Travel speeds >300 mm/min
- Arc lengths varying 3–8 mm without voltage control
- Electrode life >2000 starts
Skip plasma for <0.5 mm foil (use micro-TIG) or when joint access demands a 1 mm torch body.
Performance takeaway
Dial the correct mode, nozzle, and plasma flow once and you weld 6 mm stainless in one pass at 180 A where TIG would need three passes at 140 A each. Cycle time halves, distortion drops 70 %, and your electrode lasts ten times longer.
The next-level insight pros use: combine keyhole plasma with real-time arc voltage feedback and adaptive travel speed control—then even 10 mm titanium butt joints run perfectly automated with zero defects. Master these parameters and plasma welding stops being “another process” and becomes your competitive edge.
FAQs
What is the real difference between plasma welding and TIG welding in practice?
Plasma constricts the arc inside the nozzle before it reaches the workpiece, delivering 3–5× higher energy density and a stiff columnar shape. TIG uses an open arc that flares and wanders. Result: plasma gives deeper penetration at lower total heat input, longer electrode life, and reliable starts every time.
What plasma welding settings work best for 3 mm 304 stainless steel?
Melt-in mode: 80–100 A, 1.0–1.3 l/min plasma argon, 15 l/min shield argon, 1.5 mm setback, 2.0 mm nozzle, travel 350–450 mm/min. Keyhole if you want full penetration without filler: bump to 130 A and 2.2 l/min plasma.
Can you plasma weld aluminum successfully and what polarity do you need?
Yes—use variable polarity (VPPA) with EP pulses for oxide cleaning and EN for penetration. Typical for 6 mm 6061: 180–240 A, 50 % EN / 50 % EP balance, 3.0 l/min plasma argon, full trailing shield. Single-pass keyhole possible up to 12 mm.
Why does my plasma keyhole collapse and cause porosity?
Usually insufficient plasma gas flow or electrode setback too small for the current. Increase plasma flow 0.5 l/min and setback 0.5 mm, or slow travel speed 10 %. Check nozzle condition—any ovality destroys keyhole stability.
