I get why this idea pops up — you’ve got an old microwave sitting in the corner, and the thought of turning it into a plasma cutter sounds like a clever, money-saving project. But before grabbing a screwdriver, it’s important to understand what’s really involved in How to Make a Plasma Cutter from a Microwave — because this isn’t a typical DIY welding hack.
Inside a microwave is a high-voltage system that can store a deadly charge even after it’s unplugged. I’ve opened up plenty of shop equipment over the years, and microwave transformers are in a different league when it comes to risk.
One wrong move can lead to severe electric shock, burns, or worse — and that’s before even thinking about creating a stable plasma arc. In real-world metalwork, plasma cutters rely on precise electronics, controlled airflow, and safety systems that a microwave simply isn’t designed for.
Trying to force it into that role usually leads to inconsistent performance at best, and serious hazards at worst. It’s not just about whether it can work — it’s about whether it can work safely and reliably.
I’ll walk you through what’s actually happening inside both machines, why this conversion is risky, and the safer, practical alternatives that will get you clean cuts without putting yourself in danger. Here’s what you need to know before attempting anything like this.

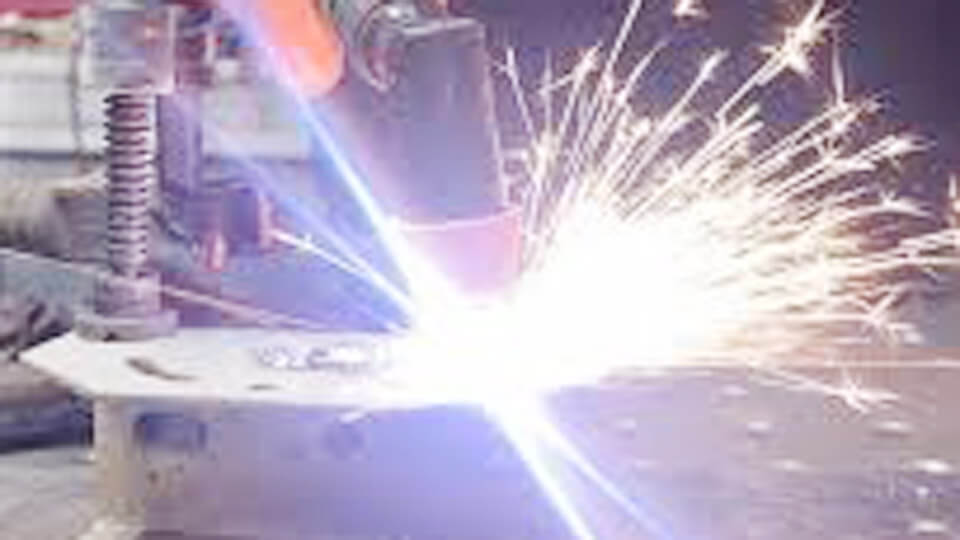

Image by hackaday
Fundamental Limitations of Microwave Transformer Power Supplies
Microwave oven transformers output approximately 2000–4000 V at 0.3–0.5 A from the secondary when the primary receives 120 V or 240 V input. The high voltage suits magnetron operation but fails for plasma cutting, which requires low voltage (100–150 V open circuit) and high current (30–100 A sustained) to maintain a stable transferred arc.
To adapt an MOT:
- Remove the secondary winding completely (high-voltage coil).
- Wind a new low-voltage secondary using heavy-gauge wire (typically 4–8 turns of 8–10 AWG or welding cable) to produce 60–120 V at 50–100 A short-circuit.
- Connect primaries in series or parallel depending on input voltage and desired output.
- Use a bridge rectifier (200–400 V, 100+ A rating) to convert to DC.
Even with rewinding, MOT cores saturate quickly under heavy load, causing overheating within minutes. Typical usable output reaches 40–60 A before excessive heat buildup. Duty cycle drops to 10–20 % versus 60–100 % on commercial inverters.
Required Components Beyond the Transformer
A complete setup needs:
- Power section: Rewound MOT(s), rectifier bridge, large smoothing capacitors (if attempting filtered DC).
- Arc starting: High-frequency or high-voltage spark circuit (ignition coil + capacitor + dimmer for crude control, or dedicated HF unit).
- Torch: Custom or modified blowback-style torch with nozzle, electrode (hafnium-tipped), swirl ring, and air line (60–90 PSI clean, dry air).
- Pilot arc circuit: To initiate plasma without touching workpiece.
- Control: Contactor for main power, foot pedal or trigger for torch, gas solenoid.
Many DIY attempts scavenge ignition coils for HV starting and use automotive relays. Compressed air must remain oil-free to prevent torch damage.
Step-by-Step Modification Process
- Discharge and remove the MOT capacitor (lethal stored charge remains).
- Cut away the factory secondary winding using a chisel or angle grinder; preserve core integrity.
- Insulate the core and wind new secondary turns (calculate: target V = (turns_new / turns_primary) × input V; adjust for load drop).
- Mount rectifier diodes on heatsinks; parallel multiple for current capacity.
- Wire primary to input via heavy contactor.
- Fabricate torch body from copper tubing, insulating sleeves, and electrode holder.
- Integrate air supply with regulator and solenoid timed to post-flow.
- Test at low duty cycle with current-limited load first.
Output voltage under load typically falls to 20–40 V, insufficient for clean piercing on thicker material.
Performance Expectations and Realistic Cutting Capability
Rewound MOT plasma cutters cut mild steel up to 1/8 in cleanly at 40–60 A, with rough cuts to 3/16 in. Kerf width exceeds 0.1 in due to unstable arc. Travel speed remains slow (10–15 ipm on 1/16 in). Aluminum and stainless prove difficult without pure argon assist, unavailable in basic builds.
Compared to a $300–600 inverter plasma cutter (40–50 A, 60 % duty, CNC-ready):
- MOT build cost: $50–200 in scavenged/added parts.
- Reliability: Frequent overheating, arc blowout, electrode erosion.
- Cut quality: Dross-heavy, uneven bevels.
- Safety: Exposed high-current DC paths, no interlocks.
Professional units incorporate constant-current control, voltage sensing for arc voltage maintenance (90–120 V), and torch safety switches.
Critical Safety Hazards
Modifying MOTs exposes lethal risks absent in commercial equipment:
- Primary side remains live at mains voltage; secondary modifications create 50–100 A paths.
- Capacitor discharge can stop the heart.
- Arc starting voltages (10–20 kV from ignition coils) jump gaps, causing shocks through insulation.
- No pilot arc interlock means live torch electrode when powered.
- Overheating transformers risk fire or molten core ejection.
- Poor grounding leads to workpiece energization.
Insulate all high-current connections, use GFCI protection, wear rubber-soled boots, and never work alone. Even brief contact with live secondary delivers fatal current.
Why Most Fabricators Choose Commercial Alternatives
Budget inverter plasma cutters now start under $400, delivering consistent 40–60 A cuts with 60 %+ duty cycle, proper torch consumables, and built-in safety. MOT builds suit experimental proof-of-concept but fail long-term shop use due to downtime, consumable costs, and hazard level.
For hobbyists cutting occasional thin gauge, a used or entry-level unit outperforms any transformer hack in speed, quality, and safety.
Performance Summary
Attempting to make a plasma cutter from a microwave transformer demonstrates ingenuity in component repurposing but collides with fundamental electrical and thermal constraints. Rewound MOTs provide crude low-amperage plasma arcs suitable only for light-duty work on thin material, yet demand extensive fabrication and carry unacceptable electrical risks.
Commercial plasma systems achieve superior arc stability, cut quality, and operator protection through engineered constant-current sources and integrated safeguards.
In high-precision fabrication, arc voltage monitoring (typically 100–140 V transferred) directly correlates to cut quality; deviations signal consumable wear or air quality issues long before visible dross appears, enabling predictive maintenance that DIY transformer builds cannot replicate.
FAQs
Is it possible to cut thick metal with a microwave transformer plasma cutter?
No. Practical limit stays around 1/8 in mild steel with clean cuts; thicker material results in excessive dross, incomplete penetration, and rapid overheating.
What voltage and current does a typical MOT plasma build produce?
After rewinding, open-circuit voltage ranges 80–150 V, dropping to 20–50 V under load, with 30–60 A sustained before thermal runaway.
How dangerous is working with modified microwave transformers?
Extremely dangerous. High-voltage starting circuits, live mains on primary, high-current secondary paths, and stored capacitor energy present multiple electrocution and fire hazards.
Can I use a single microwave transformer or do I need multiple?
Single MOT suffices for very low power (under 40 A); stacking two in parallel increases current but complicates cooling and saturation issues.
Why do commercial plasma cutters perform better than DIY MOT versions?
They use inverter topology for constant current, precise pilot arc control, consumable-optimized torches, and safety interlocks—features impossible to match with transformer rewinds.
