Cutting aluminum with a plasma torch can feel unpredictable fast — one pass comes out clean, the next leaves a rough edge with dross stuck underneath. The arc seems right, your hand is steady, but the result just doesn’t match.
That’s where dialing in the Plasma Cutter Settings for Aluminum makes all the difference between a smooth cut and hours of cleanup.
Aluminum behaves differently than steel. It conducts heat quickly, reflects it back, and can throw off your cut if your amperage, air pressure, or travel speed aren’t balanced. Get the settings wrong, and you’ll deal with excessive dross, wide kerfs, or edges that need grinding before they’re usable.
In the shop, the right setup saves more than just time — it protects your consumables, improves accuracy, and gives you cleaner cuts right off the table. I’ve had jobs where a small tweak in air pressure or speed turned a messy cut into something that barely needed touch-up.
If you want sharp edges, minimal dross, and consistent results on aluminum, here’s the setup that actually works.

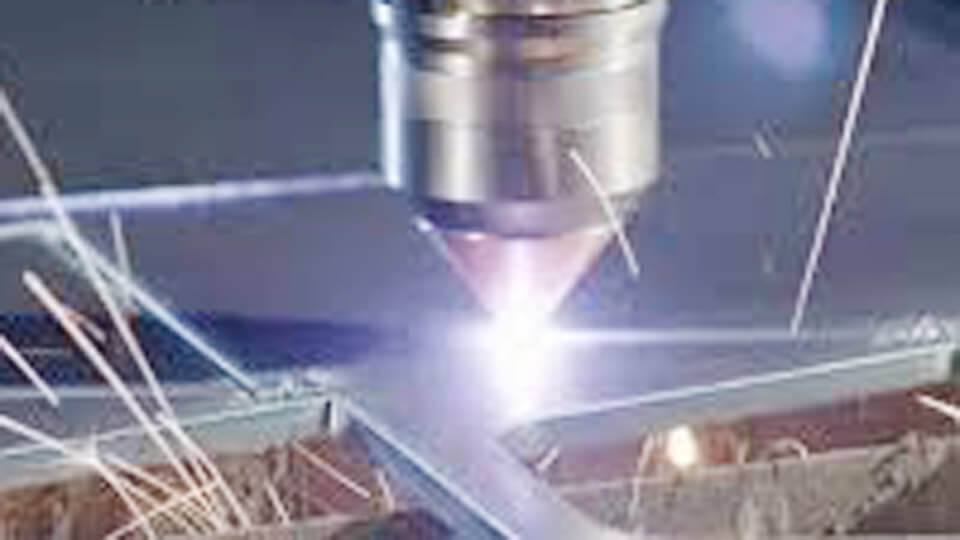

image by rapiddirect
Gas Selection Impact on Aluminum Cut Performance
Gas choice controls arc temperature, oxide prevention, and edge finish on aluminum.
- Compressed air delivers acceptable results on thin material (<1/8 in) but introduces nitrogen into the cut zone, creating a hard, nitrided layer that complicates welding.
- Nitrogen as plasma gas (with air or nitrogen shield) produces superior edge quality on aluminum under 3/16 in by reducing oxidation.
- Argon-hydrogen blends (H-35: 65% Ar / 35% H₂) yield the cleanest cuts on thicker aluminum (>1/2 in), offering maximum heat and minimal dross, though systems must support safe handling.
- For dual-gas systems, nitrogen plasma with nitrogen shield balances cost and quality on most shop aluminum up to 1/2 in.
Hypertherm specifies nitrogen for best quality under 0.188 in; argon-hydrogen for thick sections. Always match gas to consumable set and verify regulator pressure maintains torch dynamic flow.
Amperage and Consumable Selection by Thickness
Amperage must align with nozzle orifice and material thickness to optimize energy density without overheating the plate.
Common amperage ranges for aluminum (using shielded consumables, air plasma unless noted):
- 16–18 ga (0.060–0.048 in): 20–30 A, fine-cut nozzle
- 1/8 in (0.125 in): 40–45 A, standard nozzle
- 3/16 in (0.188 in): 45–55 A
- 1/4 in (0.250 in): 45–60 A, often derated to 40–45 A for detail work
- 3/8 in: 60–80 A
- 1/2 in+: 80–105 A, nitrogen or H-35 recommended
Lower amperage with finer nozzles narrows kerf and reduces heat input for intricate cuts. Higher amperage increases speed but widens kerf and raises dross risk on aluminum due to its conductivity.
Recommended Cut Charts for Aluminum
Use manufacturer cut charts as the baseline; test cuts refine settings for your specific machine, torch, and material alloy (e.g., 5052 vs 6061).
Typical parameters for mid-range systems (45–65 A class, air plasma, shielded torch):
| Thickness | Amperage | Air Pressure (psi) | Cut Speed (ipm) | Pierce Delay (s) | Cut Height (in) |
| 1/8 in | 45 A | 70–80 | 80–100 | 0.4–0.5 | 0.06 |
| 3/16 in | 45–50 A | 75–85 | 60–80 | 0.5–0.8 | 0.06–0.08 |
| 1/4 in | 45–60 A | 75–90 | 40–55 | 0.8–1.0 | 0.08 |
For fine detail on 1/4 in, drop to 40 A fine-cut consumables at 20–35 ipm for crisp edges and minimal heat distortion.
CNC tables often run 10–20% faster with THC maintaining exact torch height.
Torch Height, Pierce, and Cut Parameters
Pierce height starts 1.5–2× cut height to allow arc transfer without blowback. Cut height maintains 0.06–0.10 in depending on amperage.
- Thin aluminum (<1/8 in): Pierce height 0.125–0.150 in, cut height 0.060 in
- 1/4 in+: Pierce height 0.150–0.190 in, cut height 0.080 in
Arc voltage governs THC; typical 130–145 V on 45 A aluminum cuts. Monitor voltage feedback—if too high, raise torch; too low, lower it.
Pierce delay prevents splash-back: 0.1 s on thin sheet, up to 1.0 s on 1/2 in plate.
Travel Speed Optimization
Aluminum demands faster travel than mild steel at the same amperage to avoid heat buildup and bottom dross.
- Optimal lag lines angle 15–20° backward from travel direction.
- Too slow: excessive heat warps thin plate, heavy bottom dross.
- Too fast: top spatter, incomplete penetration, high-speed dross.
Start 10–15% below chart speed, increase until dross minimizes. On CNC, aluminum speeds often 70–90% of mild steel equivalents due to conductivity.
Consumable Wear and Maintenance Factors
Aluminum accelerates electrode and nozzle erosion compared to steel because of oxide layers and higher thermal transfer.
- Inspect nozzle orifice after 100–200 pierces; replace at 1.5× original diameter.
- Use fine-cut consumables below 40 A for detail work—narrower kerf, stiffer arc.
- Shield cap protects from spatter; replace when grooves form.
Weekly torch cleaning prevents gas swirl issues that widen kerf on aluminum.
Adjustments for Handheld vs CNC Operation
Handheld cutting relies on steady hand speed—aim for consistent 40–60 ipm on 1/8 in at 45 A.
CNC benefits from THC and programmed pierce sequencing. Use lead-ins (1–1.5 in) at 45° angle to minimize divots. For aluminum, reverse cut direction on internal features if bevel appears excessive.
Troubleshooting Common Aluminum Cut Defects
- Excessive bottom dross: Increase speed or reduce amperage 5–10 A.
- Rough top edge/oxide layer: Switch to nitrogen plasma; ensure clean, dry compressed air.
- Warpage on thin sheet: Lower amperage, use water table if available, or stagger cuts.
- Wide kerf/poor detail: Drop to lower-amp nozzle set.
Always begin with manual-recommended settings before fine-tuning.
Performance Summary
Optimized plasma cutter settings for aluminum hinge on matching amperage to thickness, prioritizing nitrogen or argon-hydrogen gas for oxide control, and calibrating travel speed to produce 15–20° lag lines with minimal dross.
Shops following manufacturer cut charts and verifying with test coupons routinely achieve near-weldable edges on 1/8–1/4 in material while extending consumable life 20–30%.
On automated tables, track cumulative pierce count per consumable set against aluminum-specific erosion rates—electrode pitting accelerates 1.5–2× faster than on steel, so schedule swaps at 70–80% of rated life to maintain arc stability before visible quality drop-off occurs.
FAQs
What gas is best for plasma cutting aluminum?
Nitrogen as plasma gas delivers the cleanest edges on aluminum under 3/16 in; argon-hydrogen blends excel on thicker plate. Compressed air works but leaves a nitrided layer.
Can I cut aluminum with a standard air plasma cutter?
Yes, but expect more dross and rougher edges than with nitrogen. Use manufacturer aluminum settings and increase speed to compensate.
What amperage should I use for 1/4 inch aluminum?
45–60 A depending on system; many operators run 45 A with fine-cut consumables at 40–55 ipm for cleaner results and less heat distortion.
Why does my aluminum cut have heavy dross on the bottom?
Travel speed is too slow or amperage too high for the thickness. Increase speed until lag lines reach 15–20° backward, or drop amperage 5–10 A.
Do I need different consumables for aluminum?
Use the same shielded consumables as steel, but fine-cut nozzles below 40 A improve detail. Replace more frequently due to faster erosion on aluminum.
