Running a fillet weld that looks good on the surface but fails under load is one of those mistakes that sticks with you. It usually happens when the weld is just a bit too small to handle the stress, even though it “looks fine.”
That’s why understanding What Is the Minimum Size of a Fillet Weld? is more than a technical detail—it’s a safety requirement that directly affects joint strength and reliability.
In real fabrication work, weld size isn’t something you guess. Go too small, and the joint can crack or fail under pressure. Go too large, and you waste filler metal, add unnecessary heat, and risk distortion. Finding that minimum size—the right balance—is what separates a solid weld from an inefficient or unsafe one.
This is especially important whether you’re working on structural frames, brackets, or everyday shop projects. I’ll break down how minimum fillet weld size is determined, what factors affect it, and how to apply it correctly so your welds hold up when it matters most.

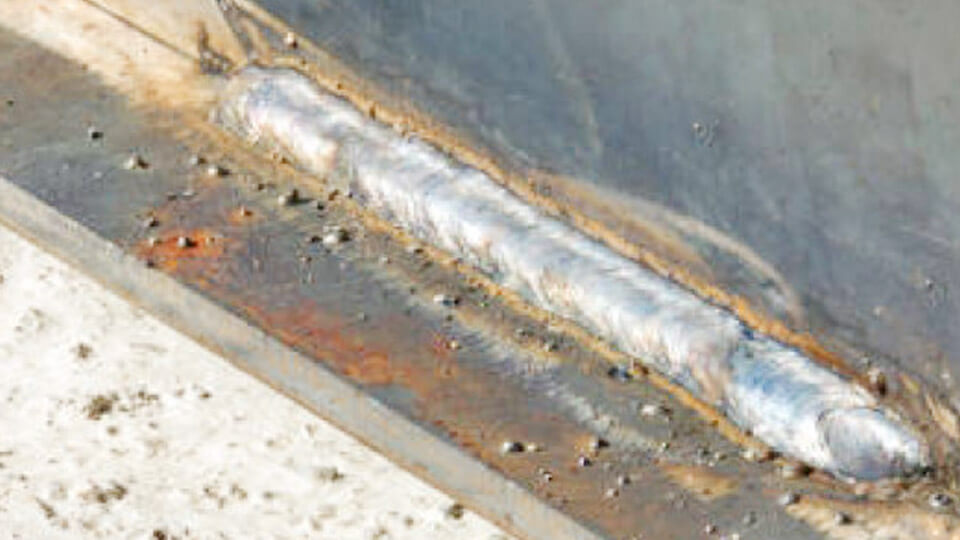

Image onestopndt
Defining Fillet Weld Size: Leg Length, Throat, and Effective Dimensions
Fillet weld size is specified by the leg length—the distance from the root to each toe along the fusion faces. Codes reference leg length because it is the easiest dimension to measure consistently with standard gauges.
For an equal-legged fillet, the theoretical throat (shortest distance from root to hypotenuse face) equals leg length multiplied by 0.707. That throat carries the shear load.
Leg Length as the Primary Specification
AWS D1.1 and AISC J2.4 list minimum leg lengths directly. A 1/4-inch fillet means each leg must measure at least 1/4 inch on both plates. Undersize on either leg fails inspection.
The leg also determines the effective area: throat × weld length. Designers rarely call out throat size on drawings because fabricators cannot control it as precisely as leg length.
Theoretical Throat and Its Role in Strength
The design throat (where ( s ) is leg size) assumes a flat or slightly convex face with no concavity penalty. Convexity up to the limits in AWS Table 7.9 is allowed, but excessive convexity wastes filler metal without adding effective throat.
Concavity reduces effective throat and triggers rejection if it drops below the required dimension. In practice, a 1/4-inch leg fillet delivers roughly 0.177 inch of effective throat—use this number when you run quick hand calculations before confirming with the engineer.
Convexity, Concavity, and Real-World Measurements
A convex fillet adds reinforcement but does not increase the design throat for strength calculations. AWS permits up to 1/8-inch convexity on larger fillets; anything more is rejected as oversized in appearance only.
Concave fillets are common with low-hydrogen processes but must still meet the minimum leg on both sides. Measure both legs at three points along the weld; the smallest reading governs acceptance.
Why Minimum Fillet Weld Sizes Exist in Welding Codes
Minimum sizes are not arbitrary. They exist to force sufficient heat input into the base metal so the weld and heat-affected zone (HAZ) cool at a controlled rate. Rapid cooling on thin material traps hydrogen and creates hard, brittle microstructures that crack under residual stress.
Heat Input and Hydrogen Cracking Prevention
Single-pass minimum-size fillets deliver the lowest acceptable heat input for the given thickness. Multiple small passes on the same joint increase total heat but risk lack of fusion between passes and still violate the single-pass intent of the table.
Low-hydrogen electrodes relax the rule slightly in some codes, but the base-metal-thickness table remains the floor.
Single-Pass Requirements for Minimum Sizes
AWS D1.1 Table 7.7 footnote explicitly states that minimum sizes shall be achieved in a single pass unless the engineer approves otherwise. This prevents fabricators from stacking tiny beads to reach a listed size while delivering inadequate penetration and heat input to the root.
AWS D1.1 Minimum Fillet Weld Size Requirements
AWS D1.1 Table 7.7 (identical in intent to AISC Table J2.4) governs structural steel work in the United States. The values apply to the thinner of the two members joined.
| Base Metal Thickness (T) | Minimum Fillet Weld Size (leg) |
|---|---|
| T ≤ 1/4 in (6 mm) | 1/8 in (3 mm) |
| 1/4 in < T ≤ 1/2 in (6–12 mm) | 3/16 in (5 mm) |
| 1/2 in < T ≤ 3/4 in (12–20 mm) | 1/4 in (6 mm) |
| T > 3/4 in (20 mm) | 5/16 in (8 mm) |
The weld size need never exceed the thickness of the thinner part. For cyclically loaded structures the absolute floor rises to 3/16 in regardless of thickness.
Table Breakdown by Base Metal Thickness
For 10-gauge (0.135 in) sheet, the minimum is still 1/8 in because the table starts at the thinnest practical structural member. On 3/8-inch plate the floor jumps to 3/16 in. Above 3/4 in the 5/16-in minimum protects against excessive cooling rates on heavy sections even when loads are light.
Exceptions for Cyclic Loading and Non-Low-Hydrogen Processes
Cyclic service (bridges, vibrating machinery) demands 3/16 in minimum to reduce stress risers at the weld toe. When using non-low-hydrogen SMAW without preheat, the thickness used in the table becomes the thicker part joined. This forces larger single-pass welds and higher heat input.
Comparison with AISC Specifications
AISC 360 Table J2.4 mirrors AWS D1.1 exactly for building construction. The commentary explains the table prevents hydrogen-assisted cracking by guaranteeing minimum heat input. Engineers may specify larger welds for calculated loads, but never smaller.
Calculating Required Fillet Weld Size Beyond the Minimum
Minimum size satisfies code and cracking rules. Actual load often requires larger welds. Start with the applied force, then size the weld to keep shear stress below allowable.
Load Analysis for Static vs. Dynamic Applications
Static shear allowable for E70XX electrodes is typically 0.3 × 70 ksi = 21 ksi on the throat. For a 1/4-inch leg fillet the allowable load per linear inch is lb/in. Dynamic or fatigue loading drops the allowable dramatically—use AWS D1.1 Clause 2.14 or AISC fatigue curves and often double the static size.
Strength Formulas and Allowable Stresses
Effective throat area , where ( L ) is effective length.
Allowable shear force .
For E70 electrodes under static loading, ksi = 21 ksi.
A common quick formula for E70 fillet capacity: 0.928 kips per inch of weld length per 1/16 inch of leg size. Multiply by leg size in sixteenths and length in inches.
Examples of Size Determination for Common Joints
Lap joint transferring 12 kips over 8 in of weld length with E70XX: required throat = 12{,}000 / (0.707 × 21{,}000 × 8) ≈ 0.101 in → leg size ≈ 0.143 in. Code minimum for 3/8-in plate is 3/16 in (0.1875 in), so use 3/16 in. A T-joint carrying bending may need 1/4 in even if code minimum is lower.
Material Thickness and Minimum Size Relationships
Thickness dictates heat sink capacity. Thin material pulls heat away faster, raising the risk of cracking unless minimum size is respected.
Thin Materials: Special Considerations
Below 1/4 in the 1/8-in minimum prevents burn-through while still delivering enough heat. On sheet metal under 1/8 in, fillet welds are rarely structural; use plug or slot welds or switch to groove details. Always verify WPS qualification covers the exact thickness.
Thick Plates: Scaling Up for Integrity
Above 3/4 in the 5/16-in minimum ensures the root pass does not quench too rapidly against massive sections. For plates over 1 in, engineers often specify 3/8-in or larger fillets or switch to partial-joint-penetration groove welds for economy.
Influence of Welding Process on Minimum Size Decisions
Process affects hydrogen level, travel speed, and deposition rate—all of which interact with the minimum-size rule.
SMAW, GMAW, and FCAW Differences
SMAW with E7018 (low-hydrogen) can sometimes relax preheat rules but still follows the same size table. GMAW spray transfer or FCAW on thick plate easily achieves 5/16-in single-pass fillets in flat position. Short-circuit GMAW on thin material may require weave technique to hit 1/8-in leg without cold lap.
Position and Accessibility Impacts
Overhead fillets lose 10–20 % deposition efficiency; welders often increase voltage or wire speed to maintain leg size. Vertical-up FCAW produces larger beads naturally, making minimum size easier to hit but requiring tighter control on convexity.
Confined spaces limit gun angle and force smaller effective legs—compensate by qualifying a WPS with restricted access.
Measuring Fillet Welds Accurably on the Job
Visual acceptance alone is never enough. Use dedicated fillet weld gauges.
Using Weld Gauges and Inspection Tools
The standard 7-piece fillet gauge set checks both leg length and throat. Place the gauge against one leg; the sliding or fixed blade reads the opposite leg. For production, check the first three welds of every shift and every 50 ft thereafter. Digital calipers with fillet attachments give repeatable readings to 0.001 in when traceability is required.
Acceptance Criteria per Code
AWS D1.1 Table 7.8 and 7.9 govern profile. Legs must meet or exceed the specified size on both sides. Undercut depth is limited to 1/32 in for material under 1 in thick. Craters must be filled to full size. Any linear indication longer than the weld thickness is rejectable.
When You Can Use Smaller or Intermittent Fillet Welds
Code allows exceptions when the engineer calculates that strength requirements are met and cracking risk is controlled.
Low-Load or Non-Structural Applications
Non-load-bearing attachments (nameplates, light brackets) may use undersize fillets if the drawing explicitly permits it and WPS qualification covers the joint. Many shops default to 1/8 in on anything thinner than 1/4 in regardless of load.
Stitch Welding Guidelines
Intermittent fillets must have minimum segment length of 1.5 in or 4× weld size (whichever is greater). Maximum spacing between segments is 12 in or 4× plate thickness. Effective length for strength is the sum of the welded segments only; do not count gaps. Cyclic service almost never permits intermittent fillets.
Advanced Factors: Fatigue, Distortion, and Joint Design
Minimum size keeps the weld sound; fatigue and distortion push decisions toward larger or strategically placed welds.
Fatigue Life and Minimum Size Implications
Fatigue cracks initiate at the weld toe where stress concentration is highest. A 3/16-in fillet on a cyclically loaded joint has a higher stress riser than a 1/4-in fillet because the toe angle is sharper relative to plate thickness. AWS fatigue category curves penalize small fillets heavily—sometimes requiring 50 % oversize to reach the desired life.
Controlling Distortion Through Sizing Strategy
Larger single-pass fillets introduce more heat and more angular distortion. Balanced double-sided fillets or intermittent patterns reduce net shrinkage. On long seams, sequence the welds from center outward or use back-step technique. The minimum-size table already limits heat input; exceeding it unnecessarily on thin sections can double distortion.
Performance-based Takeaway
The correct fillet size is the larger of the code minimum (for heat input and cracking resistance) and the calculated size (for load capacity). On 90 % of shop jobs the code table governs because calculated loads are modest. When loads demand larger welds, document the calculation on the WPS and drawing—inspectors accept it instantly.
Advanced Welding Insight
In high-cycle fatigue service, the weld toe radius becomes the life-limiting feature. A 1/16-inch increase in leg size combined with toe grinding or TIG dressing can multiply fatigue life by a factor of three without adding significant weight or cost—something the best fabricators use to win long-term contracts on vibrating equipment and bridges.
FAQs
What is the minimum fillet weld size for 1/4-inch thick steel?
3/16 in leg length per AWS D1.1 Table 7.7. The weld must be made in a single pass unless the engineer approves otherwise.
How does throat size relate to leg size in fillet welds?
Theoretical throat = leg size × 0.707 for equal-legged fillets. Strength calculations always use the effective throat, not the leg.
Can I use a smaller fillet weld if I add multiple passes?
No. The minimum size table requires single-pass achievement to guarantee heat input. Multiple passes do not satisfy the cracking-prevention rule even if the final leg measures correctly.
Does aluminum have different minimum fillet weld sizes?
Yes. AWS D1.2 uses a separate table with generally smaller minimums (often 1/16 in or 3/32 in for thin sections) because aluminum has higher thermal conductivity and different cracking mechanisms. Always check the specific code for non-ferrous alloys.
