How to Choose the Right Tungsten for TIG Welding

A TIG arc can go from smooth and stable to wandering all over the joint just because of the tungsten in your torch. One minute you’re trying to hold a tight bead, the next you’re fighting arc drift, contamination, or a tip that keeps balling up. Learning how to choose the right tungsten for TIG welding clears up a lot of that frustration fast.

In real shop work, tungsten isn’t just a filler detail — it controls arc stability, starts, and how clean your weld turns out. Pick the wrong type or size, and you’ll deal with inconsistent arcs, poor penetration, and wasted time regrinding electrodes.

After switching between different tungstens on steel, stainless, and aluminum, it becomes obvious that each one behaves differently under heat and current.

I’ll break down the types, sizes, and when to use each so your arc stays steady and your welds come out clean. Here’s the setup that actually makes TIG feel under control.

Image by thefabricator

Why Tungsten Choice Matters in Real TIG Welding

The tungsten electrode carries the current that creates the arc in Gas Tungsten Arc Welding (GTAW). It doesn’t melt like a consumable rod in stick or MIG, but it does erode, ball up, or split if mismatched to the job.

Wrong tungsten leads to:

• Unstable arcs that wander or extinguish
• Poor penetration on thicker material
• Excessive cleaning action or none at all on aluminum
• Higher risk of tungsten contamination in the puddle
• Faster electrode consumption and more downtime sharpening
• Increased distortion or burn-through on thin stock

In my experience, beginners often default to whatever color they see most in the bin, while pros dial it in based on inverter versus transformer machines, argon versus argon-helium mixes, and the exact alloy they’re running. A good choice saves filler rod, reduces rework, and keeps your hood down longer with confidence.

Understanding TIG Tungsten Types and Color Codes

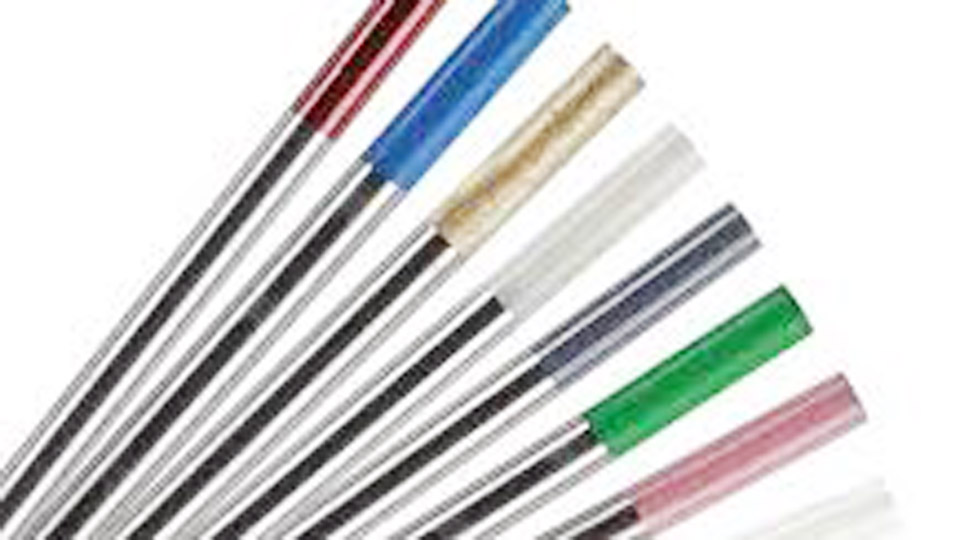

Every tungsten electrode has a color band near one end for quick identification. These follow AWS classifications and tell you the oxide additives that change electron emission, current capacity, arc starting, and durability.

Pure Tungsten (Green)

Pure tungsten is 99.5% tungsten with no intentional oxides. It excels at forming a nice rounded ball on the tip when used with AC for aluminum and magnesium. The balled tip provides broad cleaning action that breaks up oxides on the surface.

It works best on older transformer machines with higher frequency starts. On modern inverter machines with advanced square wave AC, pure tungsten tends to spit more and contaminate easier. Many shops have moved away from it for anything but basic aluminum work because consumption is higher.

Use green when welding thicker aluminum on a transformer rig where you want that classic ball and don’t mind occasional re-dressing. Avoid it for precision DC work on steel or stainless.

2% Thoriated Tungsten (Red)

Red has been the go-to for DC welding carbon steel, stainless, nickel alloys, and titanium for decades. Thorium improves electron emission, giving easy arc starts, stable arcs, and high current-carrying capacity with low burn-off.

It runs cooler than pure and deposits less tungsten into the weld. Many old-school welders still swear by it for heavy fabrication. However, thorium is mildly radioactive, so grinding dust requires careful handling—use a dedicated sharpener with good ventilation and never dry grind without extraction.

Red performs well on DCEN (electrode negative) but isn’t ideal for AC aluminum on inverters. If your shop still stocks it, reserve it for high-amperage DC jobs where longevity matters most.

2% Ceriated Tungsten (Gray or formerly Orange)

Ceriated offers excellent arc starts at low amperages, making it popular for thin materials and orbital welding. It handles both AC and DC reasonably well and serves as a non-radioactive alternative to thoriated in many cases.

The oxide helps with low-current stability on stainless or mild steel sheet. It doesn’t carry quite as much current as thoriated at the high end, so it shines on delicate work below 150 amps. Welders doing precision stainless pipe or thin auto body panels often reach for gray first.

1.5% or 2% Lanthanated Tungsten (Gold or Blue)

Lanthanated has become my default recommendation for most welders, especially those running inverter machines. Blue (2%) or gold (1.5%) versions deliver outstanding arc starts, smooth restarts, and versatility across AC and DC.

It handles aluminum on AC with good cleaning action while performing strongly on DC for steel and stainless. Current capacity is high without spitting, and it resists contamination better than pure. Many tests show lanthanated matching or beating thoriated in overall performance while being safer.

If you want one tungsten type to cover 80-90% of your shop work—mild steel, stainless, aluminum, titanium—grab 2% lanthanated blue. It’s forgiving for students and hobbyists yet reliable enough for production.

Zirconiated Tungsten (White or Brown)

Zirconiated is tailored for AC welding aluminum and magnesium. It holds a balled tip well, resists spitting, and provides excellent arc stability with high current capacity.

It outperforms pure tungsten in durability and puddle control on inverters. Use white when you do a lot of aluminum and want cleaner starts and less electrode erosion than green. Some welders prefer it for high-amperage aluminum where heat input needs to stay controlled.

Rare earth mixes like tri-mix (lanthanum + yttrium + zirconium) are emerging for even better all-around performance, but the core colors above cover most USA shop needs.

Matching Tungsten Size to Amperage and Material Thickness

Electrode diameter must handle the heat without melting or becoming unstable. Too small and it overheats, spits, or melts into the puddle. Too large and arc starts suffer and the arc becomes wide and unfocused.

General guidelines (using argon shielding gas on inverter machines):

• 0.040″ (1.0 mm): Up to 50-60 amps – thin sheet, low-amp precision
• 1/16″ (1.6 mm): 50-150 amps – light fabrication, thin stainless or aluminum
• 3/32″ (2.4 mm): 100-250 amps – most common shop size for general work
• 1/8″ (3.2 mm): 200-400 amps – heavier plate, high heat input
• 5/32″ (4.0 mm) and larger: Above 300-400 amps – heavy structural or thick aluminum

A practical rule many shops follow: Choose a diameter slightly smaller than the material thickness in inches for balanced heat. For example, on 1/8″ aluminum, a 3/32″ tungsten often works well.

Always check your machine’s manual and test on scrap. High-frequency starts help smaller diameters, while lift-arc or scratch starts may need slightly larger ones for reliability.

On DC, thoriated or lanthanated can push higher amperages per diameter than pure. On AC aluminum, zirconiated or lanthanated often allow smaller electrodes than older recommendations suggested.

Tungsten Preparation: Pointed, Truncated, or Balled

Tip geometry changes everything.

For DC welding (steel, stainless, titanium):

• Grind to a sharp point with a dedicated tungsten grinder (longitudinal grind lines only—no cross scratches).
• Include a small flat (truncated) at the tip for higher amperage to prevent the point from melting off.
• Typical grind angle: 30-45 degrees for focused arc and penetration. Shallower angles give deeper penetration but narrower beads; steeper angles broaden the arc.

Never use the same grinder for steel and tungsten—contamination will ruin future arcs.

For AC aluminum:

• Allow or create a rounded ball roughly 1.5 times the electrode diameter.
• Lanthanated and zirconiated ball more consistently and stay stable.
• Pure tungsten balls easily but erodes faster.
• Avoid over-balling; a large mushroom tip diffuses the arc too much and reduces control.

Re-dress or replace when the tip splits, flattens excessively, or shows heavy discoloration. A clean, properly prepped tungsten is one of the cheapest ways to improve weld consistency.

Choosing Tungsten for Specific Materials

Mild Steel and Carbon Steel (DCEN)

Red (thoriated) or blue (lanthanated) both work excellently. Start with 3/32″ blue for versatility. Use 70-200 amps depending on thickness. Grind to a sharp point with 30-40° angle. Clean joints thoroughly—mill scale or rust kills arc stability. Argon flow 15-20 CFH.

Stainless Steel (DCEN)

Lanthanated blue or ceriated gray shine here. They provide clean starts and minimal heat input, which helps control distortion on thin gauges common in food service or exhaust work.

For 1/8″ 304 stainless, a 3/32″ blue at 90-150 amps with a tight gas lens cup gives beautiful beads. Back purge when possible to prevent sugaring.

Aluminum (AC)

Zirconiated white or lanthanated blue are top choices on inverters. Pure green still works on transformers but lags on modern machines. Ball the tip properly. Use higher frequency (80-120 Hz) and balanced wave settings for cleaning versus penetration.

3/32″ tungsten handles 100-250 amps on most aluminum jobs. Preheat thicker sections and clean with a stainless brush immediately before welding.

Titanium and Nickel Alloys

Lanthanated or thoriated on DC with strict cleanliness. Argon or argon-helium mixes. Low amperage for thin titanium to avoid embrittlement.

Thin Gauge or Low Amperage Work

Ceriated gray or lanthanated for reliable starts below 50 amps without spitting.

Step-by-Step Guide to Selecting and Setting Up Tungsten

1. Identify the base material and thickness.
2. Determine polarity: DCEN for most metals, AC for aluminum/magnesium.
3. Check your machine type (inverter preferred for rare earth tungstens).
4. Select type: Default to 2% lanthanated blue unless you have a strong reason otherwise.
5. Choose diameter based on expected amperage.
6. Prep the tip: Grind or ball as needed.
7. Install in torch with proper collet, collet body, and gas lens if available for better shielding.
8. Set machine: Start conservative on amperage, adjust while watching puddle.
9. Test on scrap with same material and joint type.
10. Monitor during welding—adjust balance, frequency, or prep if the arc wanders or the electrode discolors rapidly.

Common Mistakes Beginners and Pros Still Make

• Using the same tungsten for steel and aluminum without thorough cleaning (cross-contamination is brutal).
• Grinding too aggressively or with contaminated wheels, leaving inclusions.
• Running too much amperage for the diameter, causing the tip to melt and drop into the weld.
• Ignoring machine settings—modern inverters allow smaller tungstens and better performance if you use advanced waveforms.
• Storing tungstens loose in drawers where they pick up dirt or bend.
• Not matching gas flow or cup size—poor shielding leads to oxidized tips fast.
• Sticking with pure tungsten on inverters because “that’s what we always used.”

Pros sometimes get complacent with high-amperage work and push red tungsten beyond safe limits on AC, or fail to truncate the point properly and lose focus.

Amperage Ranges and Practical Settings for Common Jobs

Here’s a quick reference table (approximate for 2% lanthanated on inverter with argon; always verify with your setup):

DCEN – Steel/Stainless

• 1/16″ tungsten: 50-150A
• 3/32″ tungsten: 100-250A
• 1/8″ tungsten: 200-350A+

AC – Aluminum

• 1/16″ tungsten: 50-120A
• 3/32″ tungsten: 80-200A
• 1/8″ tungsten: 150-300A+

Adjust for joint type (butt, fillet, lap), position, and filler rod diameter. Use pulse if your machine has it for thin material to control heat.

For joint prep: Bevel thicker plates, clean to bright metal, fit-up tight to minimize gap. On aluminum, acetone or dedicated cleaners followed by brushing removes oxides effectively.

Safety Considerations When Handling Tungsten

Grind thoriated electrodes with local exhaust ventilation—thorium dust is a concern over long exposure. All tungsten grinding produces fine particles; wear a respirator and eye protection. Never touch hot electrodes. Store in dedicated tubes to prevent damage and contamination.

Always use proper PPE: auto-darkening helmet, gloves, jacket, and ensure good ventilation for argon displacement in confined spaces.

Real-World Shop Examples

In a repair shop, I once watched a hobbyist fight a 1/8″ aluminum bracket with pure green on an inverter. The tip kept spitting and the arc was erratic. Switching to 3/32″ blue lanthanated with proper balling and 120 Hz frequency cleaned the bead instantly and halved the time.

On stainless exhaust tubing, a pro using ceriated gray at low amps with a gas lens produced mirror-like inside beads without sugaring. The focused arc prevented burn-through on thin walls.

For heavy mild steel plate in structural work, 1/8″ red or blue at 280 amps with a truncated point gave deep penetration without excessive reinforcement.

Comparison Table: Tungsten Types at a Glance

Lanthanated often wins as the versatile pick for mixed shops.

Final Thoughts

After years of running everything from thin sheet repairs to heavy fab, here’s what sticks with me: Start with 2% lanthanated in 3/32″ for most jobs.

It forgives minor setup variations and delivers consistent results across materials when you dial in your machine. Test on scrap, watch the puddle, and adjust prep or settings rather than blaming the electrode.

You now understand the real differences between colors, how size and geometry affect the arc, and why material and machine type drive the decision. That knowledge cuts trial-and-error time and reduces failed welds.

Keep a dedicated tungsten grinder and label your electrodes clearly. The five minutes you spend organizing and prepping properly pays back tenfold in arc quality and reduced frustration on the joint.

FAQs

What is the best all-around tungsten for TIG welding on an inverter machine?

2% lanthanated (blue) is the most versatile choice for most welders. It performs well on both AC aluminum and DC steel/stainless, offers reliable arc starts, and handles a wide amperage range without excessive wear.

Can I use thoriated red tungsten for aluminum?

It’s not recommended, especially on AC with inverter machines. Red works best for DC applications. For aluminum, switch to lanthanated blue or zirconiated white to get proper balling and cleaning action.

How do I know what size tungsten to use for my amperage?

Match diameter to current: 1/16″ for under 150A, 3/32″ for 100-250A, and 1/8″ for higher. Test on scrap—too small causes melting, too large hurts arc focus and starting.

What’s the difference between pointed and balled tungsten tips?

Pointed (ground) tips are for DC to focus the arc and improve penetration on steel and stainless. Balled tips are for AC aluminum to provide even heat distribution and oxide cleaning.

How often should I replace or regrind my tungsten electrode?

Regrind or replace when the tip splits, flattens excessively, becomes contaminated with filler or base metal, or shows heavy discoloration. A clean tip is essential for stable arcs—don’t push a damaged electrode.
