How to Remove Zinc Coating from Galvanized Steel

Removing zinc coating from galvanized steel is often necessary before welding to prevent porosity, excessive spatter, and hazardous fumes. If you’re researching how to remove zinc coating from galvanized steel, the focus should be on controlled material preparation—not just surface cleaning.

Zinc vaporizes at a lower temperature than steel, which can destabilize the arc, contaminate the weld pool, and lead to weak fusion or internal defects.

In fabrication environments, improper zinc removal directly affects penetration quality, bead consistency, and inspection outcomes. In addition, heating zinc releases fumes that can cause metal fume fever, making proper preparation a safety requirement as well as a quality concern.

Standards referenced by organizations like the American Welding Society emphasize adequate surface preparation before arc welding galvanized materials.

The sections below outline effective mechanical and chemical removal methods, safety precautions, and best practices to ensure clean weld zones without compromising base metal integrity.

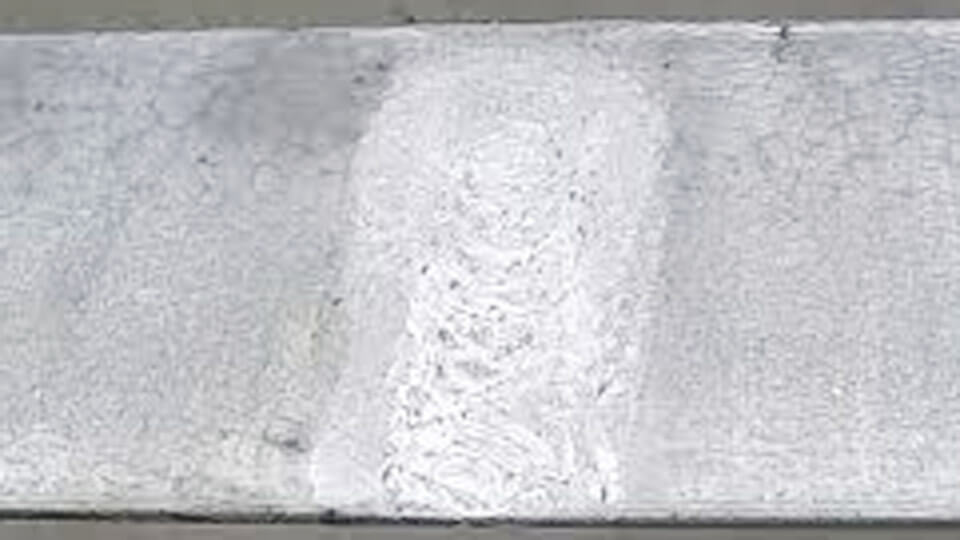

Image galvanizeit

Problem with Zinc in Welding

Zinc coating on galvanized steel serves as a sacrificial barrier against rust, typically applied via hot-dip galvanizing to a thickness of 2-5 mils (50-127 microns).

However, when heated above its boiling point of approximately 1665°F (907°C), zinc volatilizes into zinc oxide particles. This process disrupts welding in two primary ways: health risks and metallurgical issues.

From a diagnostic standpoint, the root cause is zinc’s low vaporization temperature compared to steel’s melting point around 2500°F (1371°C). During welding, this leads to fume generation, where zinc oxide aerosols enter the breathing zone.

Exposure exceeds the OSHA permissible limit of 5 mg/m³ for zinc oxide, triggering symptoms like chills, fever, nausea, and muscle aches—commonly known as metal fume fever. Recovery typically occurs within 24-48 hours, but repeated exposure can lead to chronic respiratory problems.

On the weld quality side, zinc interferes with arc stability. It causes excessive spatter, reduces penetration by up to 20-30% in fillet welds, and promotes porosity as trapped zinc gases form voids during solidification.

In tee joints or butt welds, this can result in inclusions that weaken the joint, with failure rates increasing in high-stress applications like structural fabrication.

Technically, zinc’s presence alters the weld pool’s surface tension, leading to undercut and incomplete fusion. For professionals handling AWS D1.1-compliant work, these defects necessitate rework, escalating costs and time.

Identifying this early prevents cascading issues. Inspect galvanized steel visually for the characteristic spangle pattern, and test with a magnet or thickness gauge if needed. If zinc remains, weld strength drops, with tensile tests showing reductions of 10-15% in affected areas compared to bare steel.

Factors in Choosing a Removal Method

Selecting the right zinc removal method depends on project scale, available equipment, and environmental constraints. Mechanical methods excel in precision and minimal chemical waste, ideal for shop technicians spot-treating weld zones.

Chemical approaches suit batch processing of small parts, offering thorough removal even in crevices, but require strict hazard controls. Thermal methods provide speed for large areas but amplify fume risks, making them less suitable for enclosed spaces.

Consider coating thickness: Light electro-galvanized layers (0.2-0.5 mils) strip easier than hot-dip (up to 4 mils). Workpiece size influences feasibility—large structural beams favor grinding, while hardware like bolts benefits from soaking.

Time constraints matter too: Mechanical removal takes minutes per area, chemicals hours, and thermal seconds but with post-cleanup.

Environmental and cost factors play in. Acids generate wastewater needing neutralization, while abrasives produce dust requiring containment. For U.S.-based shops, comply with EPA guidelines on hazardous waste disposal.

Balance efficiency with safety: Methods minimizing fume exposure prioritize health without compromising weld prep.

This comparison highlights measurable differences: Mechanical methods preserve more base metal (removal depth <0.1 mm), while chemicals dissolve zinc selectively without abrasion marks.

Mechanical Removal Methods

Mechanical techniques physically abrade the zinc layer, offering direct control over removal depth and area. These are solution-first for welders needing clean, fume-free joints without chemical residues. Focus on tools that minimize heat buildup to avoid partial vaporization.

Grinding Techniques

Grinding stands as the most authoritative method per AWS guidelines, removing zinc 2-4 inches from the weld zone on both sides. Use an angle grinder with a 60-80 grit silicon carbide flap disc for efficient cutting without excessive steel loss.

Operate at 8,000-10,000 RPM to balance speed and control—higher speeds risk overheating, which could release minor fumes.

Steps:

1. Secure the workpiece in a vise or clamps to prevent movement.
2. Don PPE: P100 respirator, full-face shield, leather gloves, and hearing protection.
3. Apply light pressure in overlapping passes, removing zinc in layers until bare steel appears (dull gray vs. shiny spangle).
4. Inspect with a flashlight for residual spots; zinc remnants show as white powdery areas.
5. Vacuum dust immediately to contain particles, as zinc dust is inhalable.

This method achieves clean edges, enhancing joint preparation for better penetration. In vertical positions, it reduces undercut risks by providing a smooth surface.

For thicker coatings, switch to a coarser 40-grit disc initially, then refine with finer grits. Expect 0.05-0.1 mm base metal loss, negligible for most fabrications.

Abrasive Blasting

For larger or irregular surfaces, shot blasting or sandblasting strips zinc via high-velocity abrasives. Portable units use aluminum oxide or glass beads at 80-100 PSI, targeting a removal rate of 1-2 sq ft per minute.

Steps:

1. Mask non-target areas with tape to protect adjacent coatings.
2. Set up in a ventilated booth or outdoors, using a blast cabinet for small parts.
3. Blast in sweeping motions, maintaining 6-8 inches standoff distance.
4. Continue until uniform bare steel emerges, typically 1-2 passes.
5. Rinse with water to remove residue, drying immediately to prevent flash rust.

This outperforms grinding on contoured pieces, like pipes or angles, by reaching crevices. However, it generates more dust, so integrate with a HEPA vacuum system. AWS recommends this for reinforcing bars, where uniform removal ensures consistent arc starts.

Chemical Removal Methods

Chemical dissolution leverages acid-base reactions to strip zinc selectively, ideal when mechanical access is limited. Zinc reacts with acids to form soluble salts, bubbling as hydrogen gas evolves. Prioritize ventilation, as fumes can include hydrogen (flammable) and acid vapors.

Acid Dissolution with Vinegar

Vinegar (5-10% acetic acid) provides a low-risk entry point for hobbyists and students, dissolving zinc at a rate of 0.5-1 mil per hour without attacking steel significantly.

Steps:

1. Dilute white vinegar 1:1 with water in a plastic container; for stronger action, use undiluted cleaning vinegar (6-10%).
2. Submerge parts fully, ensuring no air pockets; for large items, brush on solution.
3. Monitor bubbling—initial vigorous reaction slows as zinc depletes, taking 30 minutes for thin coatings to 4-6 hours for heavy hot-dip.
4. Remove when bubbling ceases; rinse thoroughly with water.
5. Neutralize residual acid with a baking soda solution (1 tbsp per gallon water) to prevent ongoing corrosion.

This method’s gentleness suits threaded fasteners or intricate hardware, preserving tolerances. Technically, the reaction is Zn + 2CH₃COOH → Zn(CH₃COO)₂ + H₂, producing non-toxic byproducts. Dispose of spent solution per local regs, neutralizing to pH 7.

Hydrochloric Acid Application

For faster results, muriatic acid (20-30% HCl) strips zinc in minutes, but demands professional handling due to corrosivity.

Steps:

1. Work outdoors or under fume hood; wear acid-resistant gloves, goggles, and apron.
2. Dilute to 10-15% concentration in a HDPE container.
3. Apply via brush or dip; reaction starts immediately, with intense fizzing.
4. Agitate gently for even removal, limiting exposure to 2-5 minutes to avoid steel etching.
5. Rinse copiously, then neutralize with sodium bicarbonate solution.

Rate: Dissolves 2-4 mils in 1-3 minutes. Equation: Zn + 2HCl → ZnCl₂ + H₂. This excels for batch de-zincing but risks hydrogen embrittlement if overexposed—limit to 5 minutes max. EPA classifies spent acid as hazardous, requiring proper disposal.

Thermal Removal Approaches

Thermal methods volatilize zinc using heat, but they’re diagnostic red flags due to inherent fume production. Use only as a last resort in open areas.

Employ an oxy-acetylene torch with oxidizing flame (excess oxygen) at 1800-2000°F. Sweep the flame over the area, watching zinc melt and burn off as white smoke. Follow with wire brushing to remove residue.

Steps:

1. Ventilate extensively; use a respirator rated for metal fumes.
2. Heat gradually to avoid warping—keep travel speed at 4-6 inches per minute.
3. Brush while hot for complete removal.
4. Cool and inspect; reapply if needed.

This method’s efficiency suits field repairs, but fume output can exceed 10 mg/m³ locally, violating safety thresholds. Distortion risks increase with thin gauges (<1/8 inch).

Safety Protocols and Hazard Mitigation

Solution-first safety integrates diagnostics: Assess zinc thickness via gauge (e.g., magnetic probe) to predict fume potential. Always remove in well-ventilated spaces, targeting air changes >10 per hour.

PPE essentials: NIOSH-approved P100 respirator with organic vapor cartridges, chemical-resistant gloves, full-face shield, and coveralls. For chemicals, add aprons and boots. Monitor air with a zinc oxide detector if available.

Mitigate root causes: Contain dust with wet methods or vacuums; neutralize acids to prevent skin burns. If fumes occur, cease work and ventilate—drink milk to bind zinc in the gut as a field remedy. Comply with OSHA 1910.1025 for zinc exposure monitoring in pro shops.

Post-Removal Surface Preparation

After stripping, bare steel oxidizes quickly, forming flash rust within hours. Clean with a degreaser like acetone to remove oils, then abrade lightly (220-grit) for weld adhesion.

For immediate welding, apply anti-spatter compound. If delaying, coat with a temporary rust inhibitor like LPS 3.

Joint prep: Bevel edges 15-30 degrees for butt joints, ensuring gaps of 1/16-1/8 inch to compensate for any residual effects. This step optimizes penetration, with travel speeds 10-20% slower than bare steel for stability.

Conclusion

Preventing zinc-related welding issues starts with consistent removal protocols integrated into your fabrication workflow. By diagnosing coating presence early and applying structured methods like grinding or acid dissolution, you eliminate root causes of fumes and defects, ensuring durable joints.

Shop technicians can standardize on mechanical approaches for daily efficiency, while hobbyists benefit from safer chemical options. This proactive stance reduces rework by 30-40% in galvanized projects, per industry benchmarks.

In high-amperage MIG welding on stripped galvanized steel, monitor silicon content in filler wire—opt for low-silicon ER70S-3 to minimize zinc-induced cracking in the heat-affected zone, achieving deeper penetration without porosity in multipass welds.

Frequently Asked Questions

Can I weld galvanized steel without removing the zinc?

No, it’s unsafe and compromises weld integrity. Zinc fumes cause health issues, and porosity weakens the joint. Always remove at least 2 inches from the weld area.

How long does vinegar take to remove zinc compared to muriatic acid?

Vinegar requires 30 minutes to several hours, depending on coating thickness, while muriatic acid works in 1-5 minutes but demands more safety measures.

What should I do if I accidentally inhale zinc fumes?

Stop work, move to fresh air, and rest. Symptoms peak in 4-8 hours; seek medical attention if severe. Prevent by using respirators and ventilation.

Is there a way to restore the zinc coating after welding?

Yes, apply zinc-rich paint (95% zinc content) per ASTM A780. Brush or spray to match original thickness for corrosion protection.

How do I dispose of chemical waste from zinc removal?

Neutralize acids to pH 6-8 with baking soda, then check local regulations. Many areas require hazardous waste facilities for spent solutions.
