The first weld on a new Lincoln 140 MIG welder often ends in frustration—excessive spatter on clean 16-gauge steel, shallow penetration on 1/8-inch plate, or holes burned through thin auto body panels.
These issues almost always trace back to one root cause: incorrect initial setup of polarity, drive system tension, gas flow, or baseline voltage and wire feed speed (WFS).
Mastering how to set up a Lincoln 140 MIG welder delivers consistent 30–140 amp output with minimal spatter and proper fusion across 24-gauge sheet to 5/16-inch material.
In this guide I’ll discuss the exact mechanical and electrical decisions that produce repeatable results on the Easy-MIG 140, POWER MIG 140, Pro-MIG 140, and Weld-Pak 140 models.

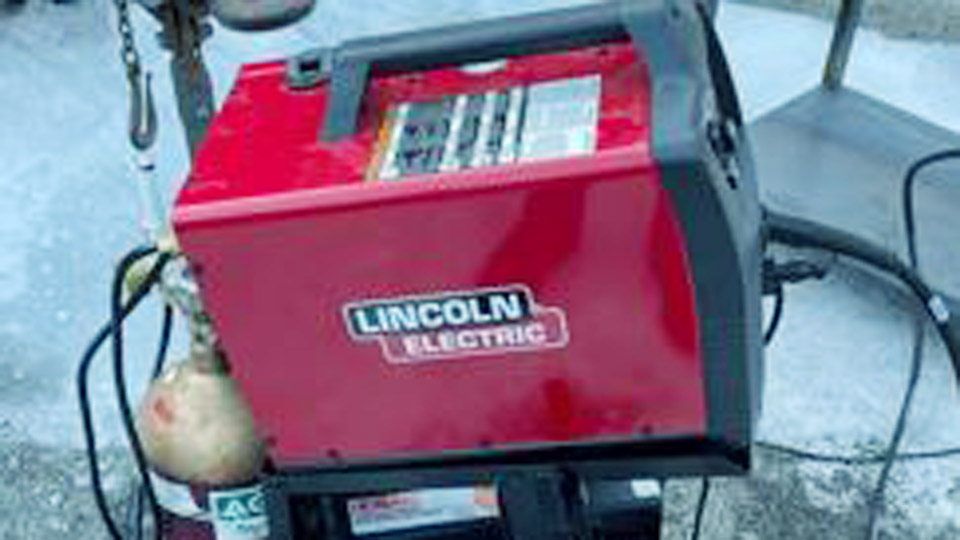

Image reddit
What Specifications Define the Lincoln 140 MIG Welder’s Performance Limits
Input Power and Output Range
The welder runs on standard 120V/60 Hz single-phase power with a maximum input draw of 20 amps at rated output. It produces 30–140 amps DC and 50–500 ipm (1.3–12.7 m/min) WFS. Rated output sits at 90 amps / 19.5 volts on a 20% duty cycle—two minutes of arc time followed by eight minutes of cooling.
This limits continuous production welding but suits hobby, farm, and light fabrication where runs stay under two minutes per joint.
Duty Cycle Implications for Real-World Use
At 90 amps you weld 20% of a ten-minute period without overheating. Drop to 60–70 amps on thin material and duty cycle rises significantly. Exceeding it trips the internal thermal protector or the 20-amp breaker. For 1/8-inch mild steel, stay under 130 amps and allow cooling between passes to avoid voltage sag that flattens the arc.
Which Wire and Gas Combinations Deliver the Best Results
Solid Wire for Gas-Shielded MIG
Use .025-inch SuperArc L-56 or ER70S-6 for 24–18 gauge sheet metal. The smaller diameter gives lower deposition and finer control at 50–300 ipm WFS. Switch to .035-inch solid wire for 3/16-inch and thicker plate where higher current (110–140 amps) prevents lack-of-fusion. Both require electrode-positive (DCEP) polarity and 75/25 Ar/CO₂ or 100% CO₂ shielding gas.
Flux-Cored Wire for Gasless Operation
Lincoln NR-211-MP .035-inch flux-cored wire handles 16-gauge to 5/16-inch steel outdoors or on dirty/rusty stock. It runs electrode-negative (DCEN) polarity, uses the black gasless nozzle, and produces deeper penetration with slag that must be chipped. No external gas needed, but expect 10–15% more spatter than solid wire.
How to Install the Welding Gun and Set Correct Polarity
Gun Connection Sequence
Slide the Magnum 100L gun cable through the front panel oval opening. Tighten the brass thumbscrew onto the gun connector for solid electrical contact. Insert the 4-pin trigger plug until it clicks. Blow out the gun liner with compressed air before first use to remove factory debris that causes bird-nesting.
Polarity Selection for MIG vs Flux-Cored
Open the side door. For gas-shielded MIG, connect the short gun power cable to the positive (+) output terminal and the work clamp cable to the negative (–) terminal. For flux-cored, reverse both leads—gun to negative, work to positive.
The change takes under 30 seconds with tool-less terminals. Incorrect polarity produces globular transfer, heavy spatter, and porous beads regardless of voltage/WFS.
How to Load Wire and Calibrate the Drive System
Drive Roll Configuration
The standard dual-track roll handles both .025–.035-inch solid and flux-cored wire. Install the roll with the correct groove facing the wire path: smooth side for solid wire, knurled side for flux-cored if your model offers separate grooves.
Release the tension arm, seat the wire in the groove, close the arm, and thread the wire through the outlet guide into the gun liner.
Wire Feeding and Tension Adjustment
Mount the spool so wire unwinds from the top. Use the spindle adapter for 8-inch reels. Feed the straightened wire end through the inlet guide, across the drive roll, and into the gun liner. Jog the trigger until wire exits the contact tip by 4 inches, then trim to 3/8-inch stickout.
Turn the numeric tension knob until the wire feeds without slipping when you pinch it lightly—typically the 2–4 range for .025-inch wire and 3–6 for .035-inch. Over-tension flattens the wire and causes feeding jams; under-tension lets the spool overrun.
How to Connect and Regulate Shielding Gas for MIG Welding
Cylinder and Regulator Setup
Secure the cylinder upright and chained. Attach the Harris regulator (CGA-580 for Ar/CO₂ mixes). Connect the 52-inch hose to the machine’s 5/8-18 inlet fitting. Crack the cylinder valve slowly, purge the regulator, then set flow. Test for leaks with soapy water at all connections.
Optimal Flow Rates by Application
Set 30–40 CFH for indoor mild steel with 75/25 Ar/CO₂. Increase to 40–50 CFH in light drafts. Pure CO₂ runs slightly higher (35–45 CFH) because of higher density.
Too low flow (<20 CFH) causes porosity; too high (>50 CFH) creates turbulence that pulls air into the puddle. For stainless, Tri-Mix (90/7.5/2.5 Ar/He/CO₂) at the same rates minimizes oxidation.
What Are the Recommended Baseline Settings from the Procedure Decal
Interpreting the Two-Knob Controls
The inner door decal provides voltage letters (A–F) and WFS numbers (1–10) correlated to material thickness and wire size. Voltage primarily controls arc length and heat input; higher settings lengthen the arc and widen the bead.
WFS directly sets deposition rate and indirectly influences amperage—faster feed raises current at a given voltage.
Settings Table for Common Thicknesses (Mild Steel)
| Material Thickness | Wire Size & Type | Voltage Setting | WFS Setting (approx. ipm) | Amperage Range | Recommended Technique |
|---|---|---|---|---|---|
| 24 gauge | .025″ solid MIG | A–B | 2–3 (150–200 ipm) | 30–50 A | Stitch welds, push angle |
| 16–18 gauge | .025″ solid MIG | C | 4–5 (200–280 ipm) | 70–90 A | Push, 3/8″ stickout |
| 1/8 inch | .035″ solid MIG | D–E | 6–8 (280–380 ipm) | 110–130 A | Push or slight weave |
| 3/16–1/4 inch | .035″ flux-cored | E | 8–9 (380–450 ipm) | 120–140 A | Drag angle, chip slag |
| 5/16 inch | .035″ flux-cored | F | 10 (450–500 ipm) | 130–140 A | Multiple passes |
Start on the decal recommendation, then fine-tune on scrap. A steady “sizzle” or “frying bacon” sound indicates correct parameters; crackling or popping means voltage too low or WFS too high.
How to Perform Test Welds and Fine-Tune Parameters
Evaluating Bead Profile and Penetration
Run 4–6 inch beads on scrap matching your project thickness. Good MIG beads show flat to slightly convex profile, smooth toes, and full penetration visible on the back side without excessive melt-through.
Flux-cored beads require slag removal before inspection. Measure travel speed—typically 8–12 ipm for 1/8-inch material—to maintain consistent heat input.
Adjustments for Stainless Steel and Thin Sheet
Stainless demands cleaner metal and Tri-Mix gas to prevent sugar or oxidation. Drop voltage one letter and reduce WFS 10–15% versus mild steel to compensate for higher thermal conductivity.
On 24–20 gauge sheet, use .025-inch wire, lowest voltage (A–B), and stitch-weld technique with 1–2 second on/off cycles to prevent warping.
Solving Frequent Setup and Arc Stability Issues
Wire Feed Problems
Bird-nesting at the drive rolls almost always results from excessive tension or a dirty liner. Clean the liner every 200–300 pounds of wire. If the wire stops feeding mid-weld, check contact tip size match (.025 tip for .025 wire) and replace if spatter has enlarged the bore.
Porosity and Excessive Spatter
Porosity signals gas contamination—clean metal with acetone, verify flow rate, and check for leaks. Spatter on MIG usually comes from voltage too low or stickout over ½ inch.
Shorten stickout to 3/8 inch and raise voltage one increment. For flux-cored, drag angle of 10–15 degrees and correct polarity eliminate most issues.
Real-World Application Insight
The Lincoln 140 MIG welder rewards precise initial setup with stable arcs and strong joints on everything from 24-gauge patches to 5/16-inch structural repairs. The decisive factors remain polarity selection, drive tension calibrated to the numeric scale, and decal-based voltage/WFS starting points—followed by immediate test beads on scrap.
Once dialed, the machine’s forgiving arc and brass-to-brass gun connection maintain consistency even when you push the 20% duty cycle on light fabrication.
For aluminum, add the optional spool gun and switch to 100% argon at 25–35 CFH; otherwise, stay with steel wire/gas combinations that keep the setup under 30 minutes from box to first clean bead.
