Fillet Weld Size Rule of Thumb | Practical Guide

When working with welded joints, especially in construction and manufacturing, one small detail can make a huge difference: the fillet weld size. Getting this right is not just about following codes—it’s about safety, cost, and the long life of a structure.

Many welders, engineers, and inspectors rely on a “rule of thumb” for fillet weld sizes, but few understand where it comes from, why it matters, and what happens if you ignore it.

Let’s break down everything you need to know about the fillet weld size rule of thumb, including how to use it, why it’s important, and the common mistakes even experienced professionals sometimes make.

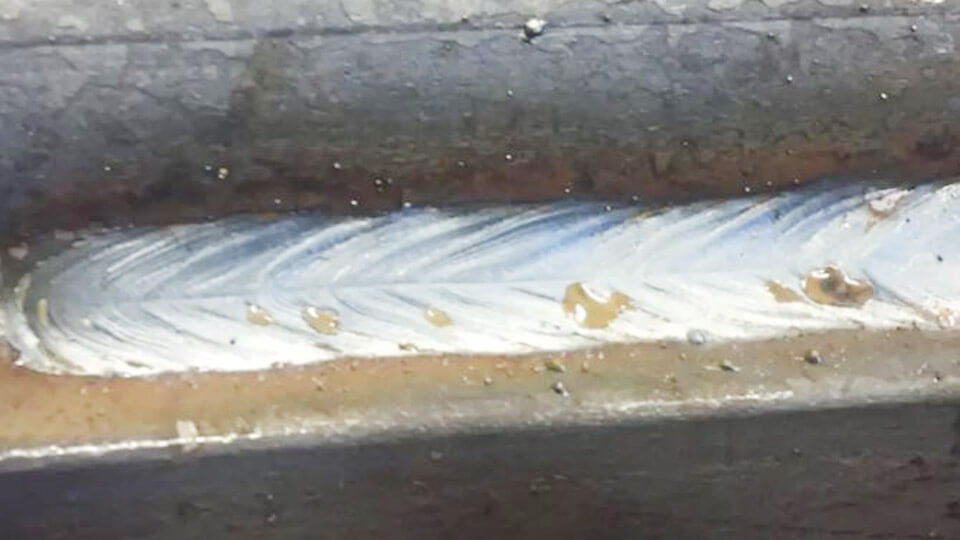

Photo weldinganswers

What Is A Fillet Weld?

A fillet weld is a triangular weld that joins two surfaces at a right angle or sometimes at an angle less than 90 degrees. You’ll see them everywhere: in steel frames, bridges, pipelines, and even home projects. They are used because they are simple, strong, and fast to make compared to more complex joints.

The size of a fillet weld is usually described by the length of the legs of the triangle or the throat (the shortest distance from the root to the face of the weld). But how do you decide what size is best? That’s where the rule of thumb comes in.

Why Fillet Weld Size Matters

Choosing the correct fillet weld size is not just about following a drawing. Here’s why it’s so critical:

Strength: If the weld is too small, it may not hold the parts together under load, leading to dangerous failures.

Cost and Time: Oversized welds use more material and take more time, which raises costs and can even cause distortion in the metal.

Inspection and Quality: Inspectors check weld size against standards. Too big or too small, and the weld may be rejected.

Fatigue and Lifespan: The right size ensures the joint will last as long as expected, even under repeated loads.

Most codes and standards, like the American Welding Society (AWS) and ISO, give detailed rules for calculating weld size. But in the field, people often use a quick estimate: the rule of thumb.

The Basic Fillet Weld Size Rule Of Thumb

The most common “rule of thumb” for fillet welds is:

The leg size of the fillet weld should be about 70% of the thickness of the thinner part being joined.

For example, if you’re welding a 10 mm plate to a 6 mm plate, the weld leg would be:

6 Mm (thinner Plate) X 0.7 ≈ 4.2 Mm

So, you would choose a 4 mm or 5 mm fillet weld.

This rule is simple, easy to remember, and usually gives a safe result for most structural work.

Why 70%? The Reason Behind The Rule

This 70% figure comes from research and practice. It gives a balance between strength and efficiency. If you go much below 70%, the weld may not be strong enough, especially under shear or fatigue.

If you go much above, the extra weld metal does not add much strength—but it does add cost and can cause problems like distortion.

When To Use The Rule Of Thumb

The 70% rule is popular, but it’s not for every case. It works best for:

• Non-critical structures where exact loads are not calculated
• General fabrication and repair work
• Quick field estimates before detailed engineering

But for bridges, pressure vessels, or anything carrying heavy, critical loads, always check the official code or have an engineer run the numbers.

Common Fillet Weld Size Rules Of Thumb

The 70% rule is not the only one used. Here are some other quick checks often used in the field:

• Weld size equal to the thinner plate: This gives maximum strength but can be wasteful.
• Weld size is 3/4 of the thinner plate: A slight variation for extra safety.
• Never make the weld bigger than the thinner plate: Prevents over-welding.
• Minimum weld size based on plate thickness: AWS D1.1 gives minimums, e.g., for plates 6-12 mm thick, use at least a 5 mm weld.

These rules help ensure you don’t make a weld that’s too weak or too big.

Official Codes And Standard Requirements

While rules of thumb are handy, official codes give more detail. For example, the AWS D1.1 Structural Welding Code requires:

• Minimum weld sizes based on plate thickness
• Maximum weld size not larger than the thickness of the thinner plate (unless detailed engineering justifies it)

Let’s compare the minimum and maximum fillet weld sizes according to AWS D1. 1.

Always check the exact code for your country or industry.

How To Measure Fillet Weld Size

Knowing the rule of thumb is one thing—measuring the actual weld is another. Here’s how it’s done:

• Use a fillet weld gauge: A tool with different cutouts for measuring leg size and throat.
• Measure both legs: The weld should not be smaller than specified on either side.
• Check the throat: For critical work, measure the shortest distance from the root to the weld face.

Sometimes, the weld may look big, but the throat is too small. That’s a common mistake.

Practical Steps For Choosing The Right Fillet Weld Size

Let’s walk through the best way to use the rule of thumb in practice:

• Identify the thinner part: Always base your calculation on the thinner plate or section.
• Calculate 70% of its thickness: This gives you your starting weld size.
• Round to the nearest standard size: Weld sizes usually come in whole millimeters (e.g., 4 mm, 5 mm).
• Check minimum and maximum sizes: Make sure your weld meets code limits.
• Consider the load: If the joint carries dynamic or heavy loads, check with an engineer or follow the code.

Here’s an example:

• Thinner plate: 8 mm
• 70% of 8 mm: 5.6 mm
• Choose 6 mm weld (a standard size)
• Check code: For 8 mm plate, minimum weld is 5 mm (so 6 mm is fine)

Common Mistakes And How To Avoid Them

Even experienced welders make mistakes with fillet weld sizes. Here are some to watch for:

1. Using The Rule Of Thumb For Everything

The rule of thumb is not for all situations. For critical structures, like cranes or pressure vessels, always use the code or engineering calculations.

2. Ignoring Maximum Weld Size

Many people focus on minimums but forget the maximum. An oversized weld can cause stress concentrations or distortion.

3. Not Measuring Both Legs

A fillet weld should be equal on both legs unless the drawing says otherwise. An uneven weld can be weaker.

4. Over-welding

Adding extra weld metal does not always make the joint stronger. It wastes time and money and can even weaken the joint by creating residual stresses.

5. Not Considering Joint Fit-up

If there is a gap between the parts before welding, you may need a larger weld to fill the gap. The rule of thumb assumes a tight fit.

Examples Of Fillet Weld Sizing In Real Projects

Let’s look at some sample cases to see how the rule works in practice.

Case 1: Structural Beam Connection

A 12 mm thick beam is welded to a 10 mm plate.

• Thinner part: 10 mm
• 70% of 10 mm = 7 mm
• Use a 7 mm fillet weld

Check code: For 10 mm plate, minimum weld size is usually 5 mm, so 7 mm is adequate.

Case 2: Pipe Flange Weld

A 5 mm thick pipe is welded to a flange.

• Thinner part: 5 mm
• 70% of 5 mm = 3.5 mm
• Use a 4 mm weld

Check code: Minimum is 3 mm for under 6 mm, so 4 mm is safe.

Case 3: Repairing A Machine Frame

A welder must fix a cracked frame made from 8 mm plate.

• Thinner part: 8 mm
• 70% of 8 mm = 5.6 mm
• Round up to 6 mm

The weld will be strong enough for most repairs.

When To Go Beyond The Rule Of Thumb

The 70% rule is a great starting point, but sometimes you need more.

• Fatigue loading: If the joint will see many load cycles, it may need a larger weld or special design.
• Corrosive environments: Thicker welds can help protect against corrosion.
• Impact loading: For joints that take shocks, check with engineering.
• Special materials: For stainless steel, aluminum, or exotic alloys, weld size may need adjustment.

In these cases, always consult the design code or an experienced engineer.

Non-obvious Insights About Fillet Weld Sizing

Many people overlook these important points:

• Weld Size and Weld Quality: A perfect 5 mm weld is stronger than a sloppy 8 mm weld. Quality matters as much as size.
• Heat Input and Distortion: Larger welds mean more heat, which can warp the steel or cause cracks. Sometimes a smaller, multi-pass weld is better than a big, single-pass weld.

Fillet Weld Size And Cost

Cost is always a concern in fabrication. Even small increases in weld size can raise costs a lot. For example:

• Increasing weld size from 6 mm to 8 mm increases weld volume by about 78%.
• More weld metal means more time, more filler wire, more gas, and more electricity.

Here’s a simple comparison.

Choosing the right size can save a lot of money over a large project.

Credit: weldings-equipment.blogspot.com

Fillet Weld Size And Fatigue

One thing beginners often miss is the effect of fatigue. Fatigue is when a weld fails after many load cycles, even if each cycle is not very strong. The shape of the weld, not just the size, is key. A smooth, properly sized weld resists fatigue much better than an oversized, rough weld.

International Differences In Rules Of Thumb

Different countries have slightly different customs and codes. For example:

• Europe (EN 1993-1-8): Often uses a 0.7 or 0.8 multiplier for fillet weld size.
• Japan and Australia: Similar rules, but sometimes require minimum weld sizes based on base metal strength.

Always check the local code before starting a big job.

Fillet Weld Symbols And Drawings

Welders and engineers use standard symbols to show fillet weld size on drawings. The size is usually given in millimeters, next to the weld symbol. For example:

• 6 mm fillet weld: A triangle with “6” next to it.
• If only one leg is specified, the drawing will show which one.

Learning to read these symbols is essential for good fabrication work.

The Role Of Welding Process In Weld Size

The welding process you use can affect the final weld size. For example:

• Shielded Metal Arc Welding (SMAW): Easy to make small or large welds, but control is needed for consistency.
• Gas Metal Arc Welding (GMAW/MIG): Good for long, consistent welds. Easy to control size.
• Flux-Cored Arc Welding (FCAW): Often used for large fillet welds in heavy fabrication.

Some processes make it easier to control weld size than others.

Visual Inspection And Acceptance Criteria

Inspectors check not just the size, but also the appearance of the weld. Common acceptance criteria include:

• Smooth, even weld face
• Correct leg and throat size
• No cracks, porosity, or undercut

A fillet weld that meets the rule of thumb but looks bad may still fail inspection.

Special Cases: Intermittent Fillet Welds

Sometimes, a continuous weld is not needed. Intermittent fillet welds are used to save material and reduce distortion. The rule of thumb still applies to the weld size, but the length and spacing of welds must also meet code requirements.

How To Communicate Weld Size Clearly

Misunderstandings about weld size can lead to errors. Always:

• Use clear, standard symbols on drawings.
• Specify both leg and throat size if needed.
• Make sure the welder understands the requirements.

Advanced Tip: Fillet Weld Size And Joint Geometry

In some cases, the joint is not a perfect right angle, or the parts are not flush. You may need to adjust the weld size or use a special calculation. Advanced texts like the AWS Welding Handbook have detailed guidance.

The Impact Of Base Metal Strength

Not all steel is created equal. Stronger steels may allow for smaller welds (if allowed by code), while weaker steels need larger welds for the same strength. Always match the weld size to the material properties.

Using Software And Weld Calculators

Modern design often uses welding calculators or structural analysis software. These tools can quickly check if the rule of thumb is enough or if a special calculation is needed. For big projects, use these tools to back up your field estimates.

Getting Started: What Beginners Should Practice

If you’re new to welding, practice making fillet welds of different sizes. Use a gauge to check your work. Pay attention to both legs and the overall shape. Good habits here will help you avoid problems later.

Summary: What To Remember

• The 70% rule is a safe, quick way to size fillet welds for many jobs.
• Always check the minimum and maximum sizes in your code.
• Use the thinner part for your calculation.
• Don’t over-weld; it costs more and can hurt the joint.
• Measure both legs and the throat for quality.
• For critical jobs, go beyond the rule of thumb and check with an engineer or use design codes.

Final Thoughts

Getting the fillet weld size right is one of the keys to safe, strong, and efficient structures. Whether you’re in the shop or the field, following the rule of thumb—and knowing when to go beyond it—will help you make welds you can trust.

Frequently Asked Questions

What Is The Most Common Rule Of Thumb For Fillet Weld Size?

The most common rule is to use a weld size that is 70% of the thickness of the thinner part being joined. This balances strength, cost, and ease of welding for most non-critical structures.

Can I Always Use The Rule Of Thumb For Fillet Weld Size?

No. The rule of thumb is good for quick estimates and general work, but for critical joints, heavy loads, or when required by code, always use the official engineering calculations or the requirements in the welding code.

What Happens If The Fillet Weld Is Too Large?

An oversized fillet weld increases cost, uses more material, and can cause distortion or residual stresses in the metal. It does not always make the joint stronger and may even make it weaker in some cases.

How Do I Measure The Size Of A Fillet Weld?

Use a fillet weld gauge to check both leg sizes and the throat. Make sure both legs are equal unless specified otherwise, and that the weld meets the minimum and maximum requirements of the code.

Does The Welding Process Affect The Fillet Weld Size?

Yes. Different welding processes (such as MIG, TIG, or Stick welding) can affect the ease and consistency of making the correct size fillet weld. Choose the process that gives the most control and matches the job requirements.
