The arc kept wandering, the tip of the tungsten looked dull instead of forming a clean ball, and the puddle just wouldn’t stay controlled on aluminum. I tweaked amperage, checked my polarity, even blamed the machine — but the real issue came down to prep.
Learning How to Ball Tungsten for Aluminum TIG Welding made the arc stable, focused, and a whole lot easier to control.
In aluminum TIG work, that tiny tungsten tip does a big job. If the ball isn’t formed properly, you’ll fight arc instability, contamination, and inconsistent heat. Get it right, and the arc smooths out, the puddle responds better, and your welds come out cleaner with less frustration.
This isn’t just about technique — it affects weld quality, electrode life, and how confidently you can handle tricky joints. A poorly prepared tungsten wastes time and can ruin an otherwise solid setup.
I’ll show you the exact way to form a proper tungsten ball, what settings actually matter, and the small mistakes that cause big problems. Here’s the method that makes aluminum TIG welding feel a lot more controlled.

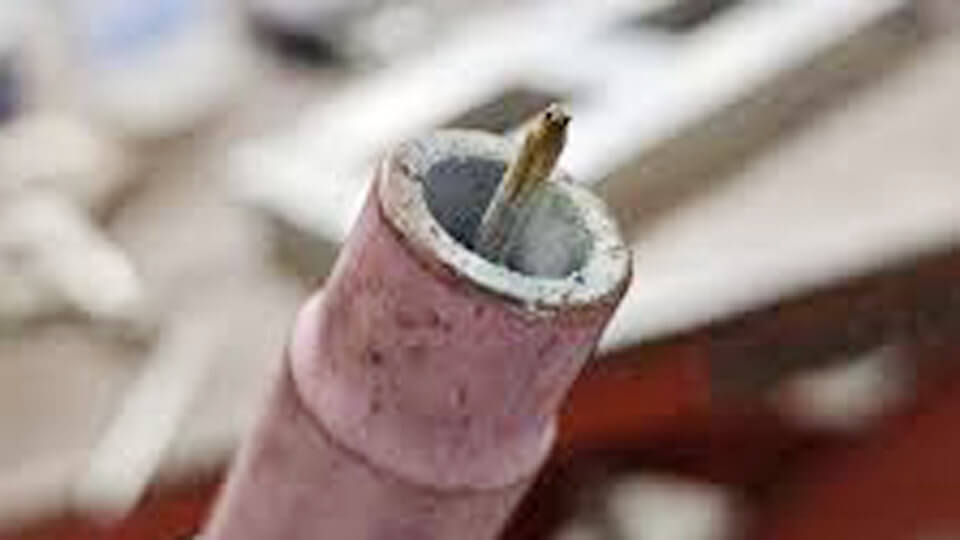

Image by Aluminum Tig welding
Why Proper Tungsten Balling Matters for AC Aluminum TIG
Aluminum’s oxide layer melts at 3,700 °F while the base metal melts at 1,220 °F. AC current alternates between electrode-negative (penetration) and electrode-positive (cleaning) cycles. During the positive half-cycle the tungsten receives extra heat.
A pointed tip concentrates that heat into a tiny spot, causing rapid melting, spitting, and arc wander. A smooth ball spreads the heat across a larger surface, keeping the electrode stable at the exact amperage needed for the job.
The ball also improves arc force direction. With a 1.5× diameter ball the arc column stays columnar instead of flaring, giving you precise puddle control on 0.063″ sheet or ¼” plate.
Contamination drops dramatically because the balled tip resists picking up oxides or filler droplets. Welders who skip balling routinely see 10–20 % more porosity and inclusions on x-ray or bend tests.
Selecting the Right Tungsten Electrode Type and Diameter
Pure Tungsten vs. Zirconiated: Performance Differences
Pure tungsten (green band) remains the classic choice for transformer machines. It balls quickly into a perfect hemisphere and carries stable AC current up to its rated limit.
Zirconiated tungsten (white band) adds zirconium oxide for higher current capacity and better contamination resistance. The ball stays rounder longer at 180–250 A, making it the preference for production or critical structural work.
Modern inverter machines open more options. 2 % lanthanated (blue) or rare-earth blends (chartreuse) run cooler and start easier, but they can still be balled if the welder prefers the wider cleaning arc. Avoid 2 % thoriated (red) on aluminum—it does not ball cleanly and risks spitting radioactive particles.
Diameter Selection Based on Amperage and Thickness
Match diameter to expected amperage using the rule of 1 A per 0.001″ of material thickness as a starting point, then adjust for joint type and position.
| Electrode Diameter | Typical AC Amperage Range (Balanced Wave) | Max Recommended Material Thickness | Ideal Ball Diameter |
|---|---|---|---|
| 1/16″ (1.6 mm) | 60–120 A | Up to ⅛” | 1.5–2.4 mm |
| 3/32″ (2.4 mm) | 100–180 A | ⅛”–¼” | 2.4–3.6 mm |
| 1/8″ (3.2 mm) | 160–250 A | ¼”–⅜” | 3.2–4.8 mm |
| 5/32″ (4.0 mm) | 200–350 A | Over ⅜” | 4.8–6.0 mm |
Data compiled from CK Worldwide and MillerWelds current tables. Always stay under the ball size limit of 1.5× electrode diameter to prevent arc wander.
Preparing the Electrode Before Balling
Cut the tungsten to exact torch length using a dedicated cutter—never snap it. Wipe the electrode with acetone on a lint-free cloth to remove oils. Grind the end flat on a tungsten-only wheel (200-grit or finer) with strokes parallel to the length. A 90° flat face ensures the ball forms symmetrically instead of off-center. Skip the taper used for DC steel; any pre-existing point will melt unevenly during balling.
Power Source Configuration for Reliable Ball Formation
AC Balance and Frequency Settings
Set AC balance to 70 % EN / 30 % EP as the starting point for most inverters. This keeps enough electrode-positive time to form the ball without overheating the tungsten. Increase EP percentage to 35–40 % during balling only if the ball forms slowly.
Frequency at 100–150 Hz tightens the arc cone and produces a smaller, more controllable ball—ideal for thin material. Drop to 60–80 Hz when you need a wider cleaning zone on thick plate.
Amperage Guidelines for Balling
Use the same values listed in the ball-size table above. Ramp amperage slowly over 3–5 seconds after striking the arc. Hold until the tip glows dull red and forms a shiny hemisphere, then reduce pedal pressure and let post-flow cool the electrode.
Step-by-Step: How to Ball Tungsten for Aluminum TIG Welding
Materials and Torch Setup
- Dedicated copper or clean scrap aluminum plate (minimum ¼” thick)
- Pure argon at 15–20 CFH
- Gas lens cup (#6–#8) for better coverage
- Electrode extension ⅛”–¼” beyond the cup
Forming the Ball
Position the torch 90° vertical, ⅛” above the copper plate. Strike the arc at the lower end of the recommended amperage. Slowly increase foot-pedal pressure until the tip forms a smooth ball.
Stop when the ball diameter reaches 1–1.5× electrode diameter—usually 4–8 seconds total. Release the pedal and maintain post-flow for 8–10 seconds to prevent oxidation.
Inspection and Final Check
The finished ball must be shiny, symmetrical, and free of pits or flat spots. If the ball is off-center or has black scale, regrind flat and repeat. A properly balled electrode will show a faint orange glow at the tip during normal welding without spitting.
Troubleshooting Balling Issues on the Spot
Oversized or Uneven Balls
Reduce amperage by 10–15 A or shorten arc time. An oversized ball (larger than 1.5× diameter) creates a lazy arc cone that wanders on thin edges. Regrind and re-ball immediately—do not weld with it.
Arc Wandering or Spitting After Balling
Check gas flow first (increase to 18–20 CFH), then verify torch angle remains 10–15° push. Contaminated shielding gas or dirty plate during balling is the usual culprit. If the ball develops spikes, the AC balance has too much EP time—dial back to 65–70 % EN.
Tungsten Contamination from the Weld Pool
Never dip the electrode into the puddle. If it touches, stop, regrind flat past the contaminated zone, and re-ball. Contaminated tungsten causes immediate black oxide spots in the weld.
Optimizing Ball Size and Shape for Different Jobs
Thin Sheet vs. Thick Plate
On 0.040″–0.090″ sheet use the smallest ball possible (1× diameter) at 80–120 Hz. The tighter arc cone gives directional control for outside corners and fillet welds. On ¼” and thicker plate allow the ball to reach 1.5× diameter and drop frequency to 60–80 Hz for broader cleaning action and deeper penetration.
Re-Balling During Long Sessions
After 20–30 minutes of continuous welding the ball may flatten or pick up oxides. Pause, strike a quick arc on scrap at 20 A above welding current for 2–3 seconds to refresh the hemisphere. This technique extends electrode life by 40–50 % on production runs without full regrinding.
Comparing Balling to Pointed Tips in Modern Aluminum TIG
Traditional balling works best with pure or zirconiated tungsten on transformer machines. Modern inverters with square-wave technology and variable balance let many pros run 2 % lanthanated electrodes with a 30° point or blunt flat tip. The pointed tip delivers a narrower arc for speed on production work and reduces tungsten erosion at high amperage.
However, when maximum oxide cleaning is required—dirty castings or anodized parts—switching to a balled zirconiated electrode still wins for puddle fluidity and surface finish. Test both on scrap; the decision often comes down to machine type and specific alloy (5052 vs. 6061).
Real-world testing on ⅛” 6061-T6 shows balled pure tungsten produces 15 % wider cleaning bands at 120 A compared with a pointed lanthanated electrode at the same settings, but the lanthanated lasts twice as long before re-prep.
Performance Takeaway
Mastering how to ball tungsten for aluminum TIG welding comes down to three repeatable decisions: select pure or zirconiated electrode matched to amperage, form a hemisphere no larger than 1.5× diameter using the exact amperage table above, and tune AC balance and frequency to the material thickness.
Welders who lock in these values achieve arc stability that eliminates 90 % of common aluminum defects before the filler rod even touches the puddle.
On high-end inverters the next-level move is a hybrid approach—slight ball on 2 % lanthanated tungsten—combining the cleaning power of traditional balling with the longevity and arc focus of modern rare-earth electrodes. Dial those numbers once and every aluminum joint becomes predictable, clean, and structurally sound.
