TIG welding without foot pedal is a common requirement in field fabrication, pipe installation, and situations where pedal control isn’t practical. While a foot pedal allows dynamic amperage control, many welders rely on torch-mounted amperage controls or preset machine settings instead.
The challenge is maintaining arc stability and consistent heat input without real-time adjustment. Poor amperage control can lead to lack of fusion, excessive penetration, distortion, or tungsten contamination—especially on thin materials or out-of-position welds.
Understanding how TIG welding without foot pedal works is critical for maintaining weld quality in confined spaces, mobile jobs, or when using lift-arc or scratch-start machines.
Heat management, travel speed, filler timing, and machine setup become more important when you cannot taper amperage during starts and stops.
In this guide I’ll explain how to control penetration, avoid crater cracking, and maintain consistent bead profile without relying on pedal modulation.

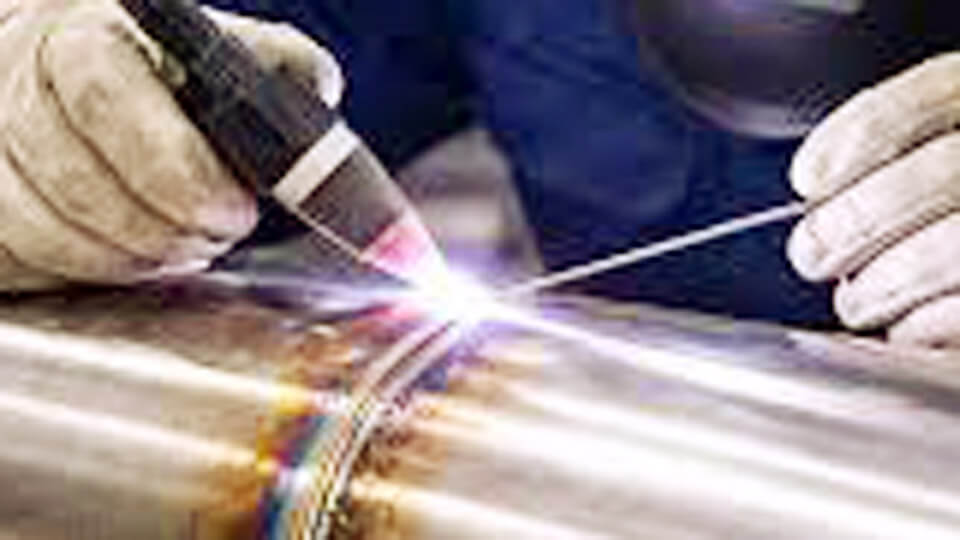

Image kongfangmetal
Understanding TIG Amperage Control Alternatives
TIG welding, or Gas Tungsten Arc Welding (GTAW), demands fine-tuned amperage to balance fusion and filler deposition. Without a foot pedal, welders shift to fixed or switched amperage modes on the power source.
Most inverter-based TIG machines, such as those from Miller or Lincoln, offer settings like “scratch start,” “lift arc,” or “high-frequency start” combined with panel-controlled amperage.
In fixed amperage mode, the machine delivers a constant current output, typically ranging from 5A to 300A depending on the unit’s capacity.
For 1/16-inch tungsten electrodes on mild steel, set amperage between 80A and 120A for 1/8-inch plate thickness to achieve 1/8-inch penetration without excessive heat-affected zone (HAZ) expansion.
Polarity selection remains critical: DCEN (Direct Current Electrode Negative) for steel yields deeper penetration, with arc force concentrated at the workpiece, while AC is essential for aluminum to break oxide layers at frequencies of 60-150 Hz.
Switched amperage via torch triggers allows binary control—high for initial puddle formation and low for filler addition. This mimics pedal functionality but lacks gradient adjustment, potentially leading to arc instability if travel speed exceeds 8-10 inches per minute on thin gauges.
Machine Setup for Pedal-Free Operation
Proper machine configuration forms the foundation for effective TIG welding without a foot pedal. Begin with electrode preparation: Sharpen 2% thoriated or lanthanated tungsten to a 20-30 degree taper for DC applications, extending 1/4-inch beyond the cup to minimize wander.
Gas flow rates should hold at 15-20 CFH of argon to shield the weld pool from atmospheric contamination, reducing porosity risks.
On machines like the Everlast PowerTIG series, enable the “2T” or “4T” sequencer mode. In 2T, the trigger initiates high amperage (e.g., 150A peak) for arc start and drops to a base level (50A) upon release, suitable for short beads.
4T adds a slope-down phase, ramping from upslope (2-5 seconds) to peak, then to downslope, preventing crater cracks in stainless steel alloys like 304.
Amperage ranges vary by material thickness:
- For 16-gauge aluminum (0.063-inch), use 100-140A AC with balance control at 70% EN for cleaning action.
- On 1/4-inch carbon steel, DCEN at 180-220A ensures full penetration with minimal distortion, assuming a 3/32-inch electrode.
Joint preparation influences setup: Bevel edges at 30 degrees for V-grooves to enhance filler flow, and maintain a 1/16-inch gap to avoid bridging defects.
Techniques for Arc Initiation and Maintenance
Arc initiation without a pedal emphasizes lift-arc or high-frequency methods to avoid tungsten contamination. Lift-arc starts involve touching the electrode to the workpiece and lifting 1/8-inch to establish the arc, ideal for DC setups on conductive materials.
High-frequency superimposes a 2-3 MHz spark for non-contact ignition, reducing inclusion risks by 20-30% compared to scratch starts.
Maintaining the arc requires consistent torch angle and travel speed. Hold the torch at 15-20 degrees from perpendicular, with the filler rod fed at 10-15 degrees to the puddle.
Without pedal modulation, compensate for heat buildup by pulsing manually—dipping the filler in 1-second intervals to control puddle size. This technique stabilizes the arc on alloys prone to cracking, like titanium, where excessive heat leads to alpha-case formation.
Deposition rates hover at 0.5-1.5 pounds per hour without pedal finesse, lower than pedaled rates of 2-3 pounds due to fixed input. Adjust travel speed to 4-6 IPM on thin sections to prevent burn-through, monitoring arc length at 1/16-1/8 inch to sustain voltage between 10-15V.
Material-Specific Adjustments
Different base metals demand tailored approaches in pedal-free TIG. For stainless steel, DCEN with 2% ceriated tungsten at 90-130A for 10-gauge material promotes narrow, deep beads with minimal HAZ discoloration. Argon-helium mixes (75/25) boost penetration by 15% at higher amperages, but increase gas costs.
Aluminum welding shifts to AC mode without a pedal, using square-wave output for balanced cleaning and penetration. Set frequency at 120 Hz and amperage at 120-160A for 1/8-inch stock, with pure tungsten or zirconiated electrodes to handle oxide removal.
Fixed settings can cause over-cleaning if not monitored, leading to black soot; mitigate by shortening arc time per pass.
On exotic metals like Inconel, employ DCEN at low amperages (50-80A) with slow travel (2-4 IPM) to control intergranular corrosion. Filler selection, such as ERNiCr-3, ensures compatibility, with pre-heat at 200°F for thicker sections to reduce cracking susceptibility.
| Material | Polarity | Amperage Range (1/8-inch Thick) | Electrode Type | Gas Flow (CFH) | Penetration Depth |
|---|---|---|---|---|---|
| Mild Steel | DCEN | 100-150A | 2% Thoriated | 15-20 | 1/8-inch |
| Stainless Steel | DCEN | 90-130A | 2% Ceriated | 18-22 | 3/32-inch |
| Aluminum | AC | 120-160A | Zirconiated | 20-25 | 1/16-inch |
| Titanium | DCEN | 80-120A | 2% Lanthanated | 12-18 (Helium Mix) | 1/8-inch |
Advantages and Limitations in Shop Applications
Pedal-free TIG offers practical benefits for U.S.-based technicians in mobile or constrained setups. It reduces equipment costs by 20-30%, as basic machines without pedal interfaces start at $500 versus $1,200 for pedaled units. Ergonomically, it suits seated welding in fabrication shops, minimizing foot fatigue during long sessions.
However, limitations include reduced control over heat input, increasing warpage risks on thin gauges by up to 15%. Arc stability suffers without real-time adjustment, potentially raising defect rates like lack of fusion in multi-pass welds.
In professional environments, this method suits tack welding or short runs but falls short for precision aerospace applications requiring ±5A modulation.
Decision framework: Opt for pedal-free if budget < $800 and projects involve straight-line beads on medium-thickness stock. Otherwise, invest in pedal-equipped machines for 25% better efficiency.
Optimizing Weld Quality Through Parameter Tuning
To elevate bead appearance and strength, fine-tune parameters beyond basic setups. Pulse frequency, available on advanced inverters, simulates pedal control by oscillating between peak (150A) and base (50A) at 1-5 Hz, improving puddle agitation and reducing heat input by 10-20%. This enhances grain refinement in high-alloy steels, boosting tensile strength to 70-80 ksi.
Travel speed directly impacts fusion: At 6-8 IPM, fixed 120A on carbon steel yields uniform penetration, but slowing to 4 IPM risks overheating. Monitor voltage arcs at 12-14V to detect instability, adjusting cup size (#6-8) for better gas coverage.
Common failure causes stem from improper settings—over-amperage leads to undercut, while under-amperage causes incomplete fusion. Quantify checks: Use calipers to measure bead width (1/4-inch ideal for 1/8-inch plate) and penetrant testing for subsurface defects.
In a shop scenario, integrating pre-flow (0.5-1 second) and post-flow (5-10 seconds) gas timings prevents oxidation, extending electrode life by 50%.
Performance Summary for Pedal-Free TIG
Adopting TIG welding without a foot pedal demands disciplined parameter control to achieve professional-grade results. Fixed or switched amperage modes deliver reliable fusion on diverse materials when paired with precise electrode prep and gas shielding.
Shop technicians benefit from cost savings and adaptability, though at the expense of nuanced heat modulation. By prioritizing machine sequencers like 4T and pulse functions, welders can mitigate limitations, ensuring arc stability and minimal defects.
For advanced optimization, consider integrating remote amperage controls via hand switches on compatible machines—this hybrid approach restores gradient adjustment without foot involvement, potentially increasing deposition efficiency by 15% on complex fabrications.
FAQs
Can I achieve the same weld quality without a foot pedal?
Yes, with sequencer modes and pulse settings on inverter machines, bead consistency rivals pedaled welds on straight runs, though intricate contours may require more passes to control heat.
What machines support TIG without a pedal?
Entry-level units like the AHP AlphaTIG or PrimeWeld TIG225X feature built-in triggers and fixed modes, compatible with DCEN/AC up to 225A, ideal for shop use under $600.
How does amperage control differ on aluminum without a pedal?
AC balance stays fixed at 60-80% EN, limiting cleaning flexibility; compensate by manual pulsing to avoid excessive etching, maintaining 100-140A for clean oxides.
Is pedal-free TIG suitable for overhead positions?
It works for short overhead beads with lower amperages (80-110A) and faster travel (8-10 IPM), but gravity affects puddle control more without modulation, increasing drip risks.
What electrode diameter is best for pedal-free setups?
Use 3/32-inch for versatility across 50-200A ranges; it handles heat better than 1/16-inch, reducing contamination in fixed modes.
