The weld looked fine at a glance, but as soon as I chipped the slag and checked penetration, I knew it wouldn’t hold. The arc had been unstable, spatter everywhere, and I’d already burned more wire than I should have. After enough wasted time and material, I stopped guessing and went back to a lincoln welder settings chart to reset everything properly.
In real welding work, small setting mistakes lead to big problems — weak joints, rework, and unnecessary safety risks.
I learned through trial and error that correct settings aren’t about perfection, they’re about consistency and reliability. When the machine is dialed in, the weld puddle behaves, and your focus stays on control instead of fighting the arc.
If you want cleaner beads, stronger welds, and fewer frustrating do-overs, keep going. I’ll show you the setup approach that actually works, step by step, in real shop conditions.
Getting Started with Your Lincoln Welder
First things first: what exactly is a Lincoln welder settings chart? It’s a reference tool that outlines recommended amperage ranges, electrode diameters, voltage, and wire feed speeds for different welding processes and materials.
Lincoln Electric, being a staple in US shops, provides these in machine manuals or apps, but I’ve compiled a hands-on version here based on common models like the Idealarc or Precision series. It works by guiding you to balance heat input with penetration—too low, and you get cold laps; too high, and you’re burning through.
How does it all come together? Start by assessing your material type, thickness, and joint design. For instance, on a 1/4-inch mild steel plate, you’d select an electrode like E7018 for stick welding, set your amperage around 130-210 amps depending on position, and adjust for DC+ polarity to ensure deep penetration without undercut.
When to use it? Every time you switch jobs—it’s your baseline before fine-tuning based on arc sound and bead appearance.
In my experience, ignoring these charts leads to costly mistakes. I once rushed a repair on a gate hinge with mismatched settings, and the weld cracked under daily use, forcing a full redo.
Proper settings promote safety by reducing arc blow risks and ensure compatibility with materials like stainless or aluminum, minimizing porosity or cracking.
Practical tip: Always clean your workpiece first—rust or paint can throw off your arc stability. And if you’re new, practice on scrap; it’s the best way to feel how tweaks affect the puddle.
Decoding Stick Welding Settings on Lincoln Machines
Stick welding, or SMAW, is where Lincoln shines—think rugged, portable setups for outdoor repairs. The settings chart for stick focuses on electrode type, diameter, and amperage, tailored to material thickness.
What it is: SMAW uses a coated rod that melts to form the weld, with the coating providing shielding gas and slag for protection. On Lincoln welders like the AC-225 or DC models, you adjust amperage via a dial or digital control.
How it works: Amperage controls heat; higher amps for thicker metal to achieve fusion, lower for thin to avoid burn-through. Polarity matters too—DC+ for deep penetration, AC for versatility on magnetized materials.
When and why: Use stick for heavy fabrication, like building frames or repairing machinery, because it’s forgiving in dirty conditions and doesn’t need gas. It’s ideal for all-position welding, especially vertical or overhead where control is key.
Shop-floor tips: Preheat thicker steels to prevent cracking, and strike the arc like lighting a match to avoid sticking. If your bead is ropey, bump up amps by 10-20; if it’s splattery, dial back.

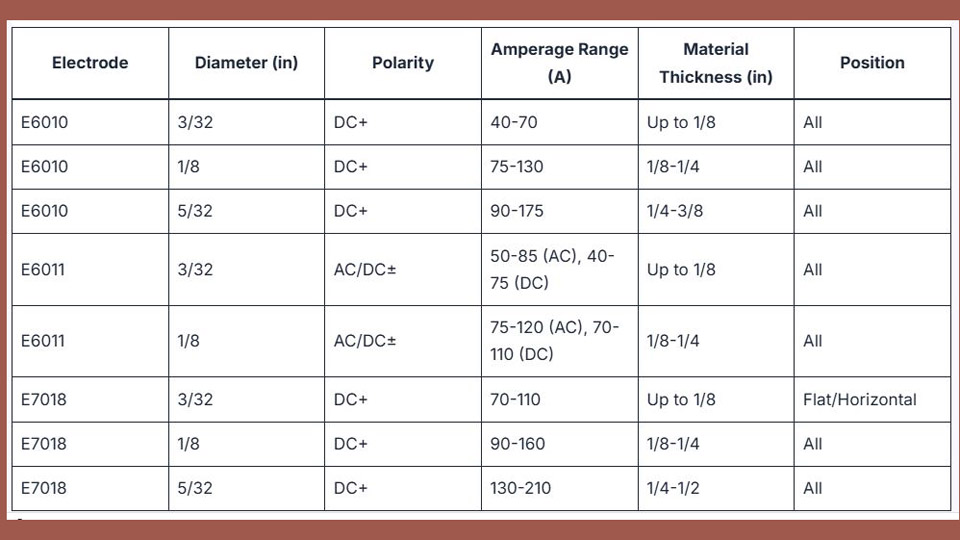

Here’s a practical Lincoln stick welding settings chart for common electrodes on mild steel (based on typical US shop practices):
| Electrode | Diameter (in) | Polarity | Amperage Range (A) | Material Thickness (in) | Position |
|---|---|---|---|---|---|
| E6010 | 3/32 | DC+ | 40-70 | Up to 1/8 | All |
| E6010 | 1/8 | DC+ | 75-130 | 1/8-1/4 | All |
| E6010 | 5/32 | DC+ | 90-175 | 1/4-3/8 | All |
| E6011 | 3/32 | AC/DC± | 50-85 (AC), 40-75 (DC) | Up to 1/8 | All |
| E6011 | 1/8 | AC/DC± | 75-120 (AC), 70-110 (DC) | 1/8-1/4 | All |
| E7018 | 3/32 | DC+ | 70-110 | Up to 1/8 | Flat/Horizontal |
| E7018 | 1/8 | DC+ | 90-160 | 1/8-1/4 | All |
| E7018 | 5/32 | DC+ | 130-210 | 1/4-1/2 | All |
I remember teaching a buddy how to weld a trailer hitch—he started with E6010 at too low amps, getting shallow penetration. We bumped it to 120A on 1/8-inch rod, and suddenly his welds held like iron.
Common mistake: Overlooking rod storage; damp E7018 causes hydrogen cracking, so keep them in a rod oven.
For fixes: If you get undercut, reduce travel speed and weave slightly. On thin metal, use smaller diameters to control heat.
Fine-Tuning Amperage for Different Materials
Amperage is the heart of your settings—it’s what melts the rod and fuses the base metal. On Lincoln welders, charts provide ranges, but real-world tweaks are essential.
What it is: Amperage measures current flow; higher values increase heat and penetration.
How it works: For a given electrode, amp range scales with diameter—bigger rods handle more amps for thicker joints.
When and why: Adjust for material—mild steel takes higher amps than aluminum to avoid warping. Use lower for overhead to prevent drips.
Practical advice: Listen to the arc—a steady bacon sizzle means good settings; crackling indicates too high amps. In my shop, I always test on scrap matching the job.
Pros of proper amperage: Stronger welds, less distortion. Cons: Wrong settings lead to porosity or weak bonds.
On a stainless exhaust repair, I used E308 at 100A on 1/8-inch, but it was too hot—switched to 80A, and the bead laid flat without burn-through.
Electrode Diameters and Their Impact
Electrode size isn’t random—it’s tied to your job’s demands.
What it is: Diameter affects current capacity; common sizes are 3/32, 1/8, 5/32 inches.
How it works: Smaller for thin metal (less heat), larger for thick (more filler).
When and why: Choose based on thickness—3/32 for sheet, 5/32 for plates. It’s crucial for efficiency; wrong size wastes rods or causes defects.
Tips: For vertical welds, go smaller to control the puddle. Beginners often pick too big, leading to sticking—start small and build confidence.
Common error: Ignoring diameter when switching positions; overhead needs finer control.
Fix: If rod sticks, increase amps slightly or improve your strike technique.
MIG Welding Settings for Lincoln Models
Shifting to MIG on Lincoln welders like the 140 or 180 series—great for clean, fast welds on auto bodies or furniture.
What it is: MIG uses wire feed and gas shielding; settings include voltage, wire speed, and gas flow.
How it works: Voltage sets arc length, wire speed controls amps—balance for smooth transfer.
When and why: Ideal for production or thin materials; less cleanup than stick.
Chart for Lincoln 140 MIG (mild steel, 0.030 wire, C25 gas):
| Thickness (in) | Voltage | Wire Speed (ipm) | Gas Flow (cfh) |
|---|---|---|---|
| 24 gauge | 15-17 | 100-150 | 15-20 |
| 1/8 | 17-19 | 200-250 | 20-25 |
| 1/4 | 19-21 | 300-350 | 25-30 |
For the 180: Dial A-J for voltage (A=10V, J=34.5V), 1-10 for speed (1=50 ipm, 10=495 ipm).
Tip: For flux-core, skip gas but increase voltage 1-2 notches.
Lesson learned: Welding a bike frame, I had birdnesting from slow wire—upped to 250 ipm, problem solved.
TIG Settings on Lincoln Precision Machines
TIG for precision work like aluminum repairs.
What it is: Uses tungsten electrode, filler rod optional; settings cover amps, polarity, gas.
How it works: Amps control heat, AC for aluminum cleans oxide.
When and why: For clean, high-quality welds on thin or exotic metals.
Chart for Precision TIG 225 (aluminum, AC):
| Thickness (in) | Amps | Tungsten Dia (in) | Gas Flow (cfh) |
|---|---|---|---|
| 1/16 | 80-150 | 1/16 | 10-15 |
| 1/8 | 150-225 | 3/32 | 15-20 |
| 1/4 | 200-225 | 1/8 | 20-25 |
Tip: Ball the tungsten on DC+ for AC welding.
Anecdote: Fixing an aluminum ladder, wrong amps caused cracking—dialed to 180A, perfect fusion.
Safety First in Every Weld
Safety ties into settings—wrong amps can cause flashes or fumes.
What it is: Proper PPE, ventilation, and machine setup.
How it works: Good settings reduce spatter and UV exposure.
When and why: Always; prevents burns or long-term health issues.
Tips: Use auto-dark helmets, gloves; ensure ground clamp is secure.
Mistake: Poor grounding leads to erratic arc—fix by cleaning connections.
Joint Preparation and Material Handling
Prep is half the battle.
What it is: Cleaning, beveling edges.
How it works: Ensures clean fusion.
When and why: For all joints, especially thick plates to allow penetration.
Tips: Bevel 30-45 degrees on >1/4-inch; use anti-spatter.
Error: Skipping prep causes inclusions—grind and retry.
Common Mistakes and How to Fix Them
Beginners overheat thin metal—reduce amps, increase speed.
Pros rush without testing—always scrap run.
Fix bad welds: Grind out, reweld with adjusted settings.
Step-by-Step Guide to Setting Up Your Lincoln Welder
- Identify process/material.
- Select electrode/wire.
- Set polarity/amps per chart.
- Adjust gas/voltage.
- Test weld, tweak.
- Weld, inspect.
Pros/cons: Charts speed setup but need experience for finesse.
Wrapping Up
Mastering these settings has turned frustrating jobs into smooth ones for me, and it’ll do the same for you. You’re now equipped to tackle welds with confidence, knowing how to match amps to rods and avoid common pitfalls that waste time and materials. Always log your successful settings in a shop notebook—it becomes your personal goldmine for repeat jobs.
FAQs
What amperage should I use for 1/8-inch E7018 on mild steel?
Aim for 90-160A on DC+, adjusting lower for overhead. Test for smooth arc without sticking.
How do I avoid burn-through on thin sheet with MIG?
Drop voltage to 15-17V, wire speed 100-150 ipm on Lincoln 140; use short bursts.
What’s the best electrode for root passes in pipe welding?
E6010 at 75-130A for 1/8-inch—great penetration, but whip technique for control.
Why is my TIG weld contaminated on aluminum?
Check settings: 150-225A AC for 1/8-inch, pure argon at 15 cfh; clean tungsten and material.
Can I use AC for stick welding on Lincoln machines?
Yes, for E6011 or similar—handles rust better, 75-120A for 1/8-inch.
