Burn-through is one of the most common problems when welding light-gauge steel. If you’re searching for how to MIG weld thin metal without burning through, you’re likely dealing with excessive heat input, poor fit-up, or unstable arc control.
Thin material cannot dissipate heat effectively, so even slightly high voltage or wire feed settings can create holes, edge melt-back, and distortion.
In automotive panels and light fabrication, burn-through weakens the joint, increases grinding time, and often requires patch repair—adding cost and labor.
Controlling short-circuit transfer, minimizing arc-on time, and managing tack spacing are critical to maintaining penetration without overheating the base metal.
Proper technique and setup—aligned with guidance from organizations like the American Welding Society—ensure adequate fusion while protecting panel integrity.
The following sections break down machine settings, wire selection, travel strategy, and heat management methods that prevent burn-through while maintaining strong, consistent welds.

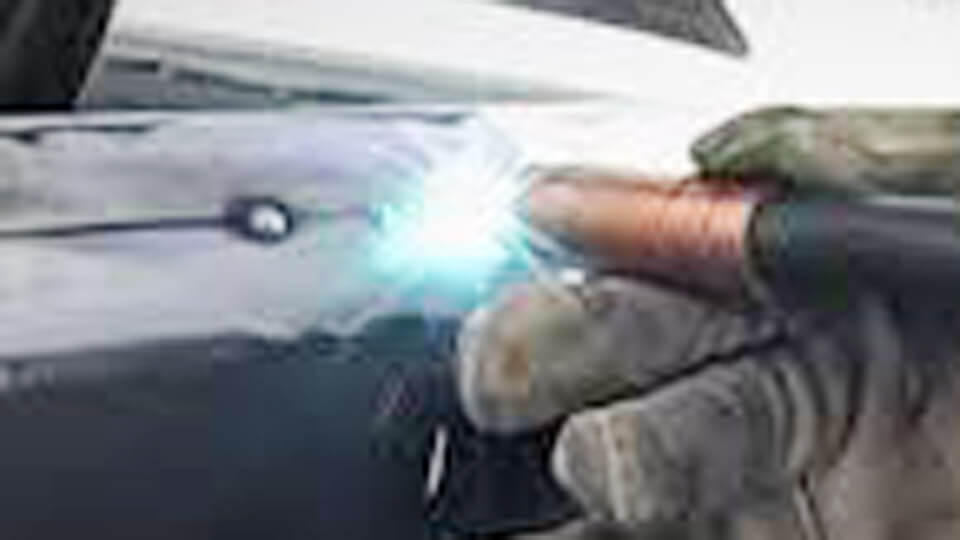

Image by eastwood
Understanding Burn-Through in MIG Welding
Burn-through happens due to excessive heat input relative to the material’s thickness. In MIG welding, the arc transfers heat through a consumable wire electrode, shielded by gas. Thin metals—typically under 1/8 inch—have low thermal mass, so heat dissipates slowly, leading to localized melting.
The root cause is often mismatched parameters: high voltage creates a wide, hot arc, while slow travel speed allows prolonged exposure. Material factors like poor fit-up or contaminants exacerbate this. Recognizing these helps in prevention.
To quantify, heat input (in kJ/inch) is calculated as: (Voltage × Amperage × 60) / Travel Speed (inches per minute). For thin metal, aim for 10-20 kJ/inch to stay below the burn-through threshold.
Essential Equipment Setup for Thin Metal
Proper setup forms the foundation for successful welds. Start with your MIG welder’s capabilities—most hobbyist machines like the Lincoln Electric or Miller models handle thin work with fine adjustments.
Wire Selection and Diameter
Choose solid wire over flux-cored for cleaner arcs on thin stock. ER70S-6 is standard for mild steel, offering good wetting and low spatter. For aluminum, use ER4043 or ER5356.
Opt for smaller diameters: 0.023-inch or 0.030-inch wire reduces heat input by allowing lower amperage. Larger wires like 0.035-inch demand more power, increasing burn-through risk.
Voltage and Amperage Settings
Voltage controls arc length; amperage dictates wire feed speed. For thin metal, lower both.
Reference this table for mild steel (argon/CO2 mix):
| Material Thickness (inches) | Wire Diameter (inches) | Voltage (V) | Amperage (A) | Wire Feed Speed (ipm) |
|---|---|---|---|---|
| 0.024 (24 gauge) | 0.023 | 14-16 | 40-60 | 150-200 |
| 0.030 (22 gauge) | 0.023-0.030 | 15-17 | 50-70 | 180-250 |
| 0.047 (18 gauge) | 0.030 | 16-18 | 60-80 | 200-300 |
These ranges assume DCEP (reverse polarity) for better penetration control. Always test on scrap.
Shielding Gas and Flow Rate
Use 75% argon/25% CO2 for mild steel—argon-rich mixes stabilize the arc and reduce heat. For stainless, tri-mix (90% helium/7.5% argon/2.5% CO2) works well.
Set flow to 15-20 CFH. Too low causes porosity; too high turbulates the gas, leading to unstable arcs and potential burn-through from inconsistent shielding.
Polarity and Machine Mode
Direct Current Electrode Positive (DCEP) is standard for MIG, providing deeper penetration but requiring caution on thin metal. Avoid DCEN unless specified for certain alloys.
If your welder supports it, switch to short-circuit transfer mode over spray for lower heat. Pulse MIG, available on advanced units, alternates high/low current to minimize heat while maintaining fusion.
Material Preparation Techniques
Preparation directly impacts weld integrity and burn-through prevention.
Cleaning and Fit-Up
Remove mill scale, rust, or oil with a wire brush or solvent. Contaminants increase resistance, forcing higher settings.
Achieve tight fit-up—gaps over 1/32 inch allow heat to escape unevenly, causing holes. Clamp pieces securely to prevent warping.
For edges, bevel if thickness allows, but on ultra-thin sheets, butt joints with minimal gap suffice.
Backing and Heat Sinks
Use copper backing bars to absorb heat without sticking. Aluminum heat sinks clamped nearby draw away excess energy.
In practice, a wet rag on the backside can serve as a temporary sink, but avoid direct contact to prevent steam explosions.
Joint Design Considerations
Favor lap joints over butt for thin metal—they distribute heat better. T-joints require slower speeds but offer strength.
Position matters: Flat or horizontal reduces gravity-induced sagging. Vertical down is riskier due to faster molten pool flow.
Core Welding Techniques to Avoid Burn-Through
Execute with focus on speed and angle for control.
Travel Speed and Angle
Maintain 20-30 inches per minute—faster than standard to limit dwell time. Slow speeds build heat pools.
Hold the gun at 10-15 degrees push angle for better gas coverage. Pull techniques increase penetration, risking burn-through.
Stitch Welding Method
Instead of continuous beads, use intermittent stitches: Weld 1-2 inches, pause 5-10 seconds to cool, repeat. This controls heat buildup.
For longer seams, tack every 2-3 inches first, then fill intermittently.
Weaving and Stringer Beads
Avoid wide weaves—they spread heat too broadly. Use straight stringers for precision.
If weaving is needed for coverage, limit to 2-3 times wire diameter width.
Pulse and Trigger Control
On pulse-capable machines, set peak current to 150-200A and background to 50-80A. This fuses without constant high heat.
Feather the trigger: Short bursts maintain arc without full power.
One practical insight from shop experience: On 22-gauge automotive panels, starting with tacks at corners prevents edge melt, allowing full beads without distortion.
Diagnosing and Correcting Common Issues
If burn-through occurs, assess systematically.
Identifying Root Causes
Holes indicate over-penetration from high voltage or slow speed. Warping suggests uneven heat distribution.
Porosity often ties to inadequate gas or dirty metal, indirectly leading to weak spots prone to burn.
Immediate Corrections
Reduce voltage by 1-2V and increase speed by 10%. Retest on scrap.
For spatter buildup causing inconsistencies, clean nozzle frequently and adjust anti-spatter spray.
Long-Term Adjustments
Calibrate your machine regularly—wire feed inconsistencies amplify heat issues. Upgrade to a synergic welder for automated parameter matching.
Another insight: In high-volume fabrication, logging settings per job reveals patterns, like how humidity affects gas flow needs.
Advanced Optimization for Professionals
Assuming familiarity with basics, focus on efficiency.
Refine arc stability by matching wire speed to voltage precisely—aim for 1:1 ratio in ipm to volts for balanced transfer.
Control penetration via CTWD (Contact Tip to Work Distance): Shorter (3/8 inch) increases heat; longer (1/2 inch) diffuses it.
Monitor deposition rate: Thin metal welds should deposit 2-4 lbs/hour to avoid excess filler buildup.
Incorporate vision aids like auto-darkening helmets for better angle precision.
For alloy-specific tweaks, on galvanized steel, use lower settings to minimize zinc vapor, which disrupts the arc.
FAQ
What Wire Feed Speed Works Best for 18-Gauge Steel?
For 18-gauge mild steel with 0.030-inch wire, set 200-250 ipm at 16-18V and 60-80A. This balances fusion without excess heat—adjust based on your machine’s response to maintain short-circuit transfer.
Can I MIG Weld Thin Aluminum Without Burn-Through?
Yes, use pure argon gas, ER4043 wire at 0.030-inch, and 17-19V with 80-100A. Push technique and faster travel (25-35 ipm) prevent pooling. Preheat slightly if over 1/16 inch to aid fusion.
How Does Gas Mix Affect Thin Metal Welds?
Argon-heavy mixes (80/20) stabilize the arc for cleaner beads, reducing spatter that can lead to hotspots. CO2-rich mixes increase penetration, heightening burn-through risk—stick to argon blends for control.
What’s the Minimum Thickness for MIG Without Special Equipment?
Reliably down to 24 gauge with standard MIG, but for 26+ gauge, pulse mode or TIG is preferable. Without pulse, use 0.023 wire and minimal settings to avoid holes.
Why Do My Welds Warp on Thin Sheets?
Warping stems from uneven cooling—minimize by stitch welding and clamping to a heat sink. Post-weld, use a planishing hammer lightly to straighten without weakening the joint.
Wrapping Up
This approach to MIG welding thin metal emphasizes parameter precision and technique discipline to prevent burn-through while ensuring structural integrity. By integrating low-heat setups with controlled execution, you’ll produce professional-grade results efficiently.
For an advanced insight: Experiment with variable pulse frequencies (50-100 Hz) on inverter machines to fine-tune heat cycles, often reducing distortion by 20-30% in repetitive production runs. This elevates your fabrication from functional to optimized.
