Welders frequently come across the abbreviation “RD” on fabrication drawings, weld symbols, and job specifications — and it can cause real confusion on the shop floor or in the field. RD in MIG welding stands for “round” or “radius,” and it most commonly refers to a rounded weld profile or a specific weld bead geometry. In weld symbol notation, RD can describe a contour finish type, indicating the weld face should be finished with a rounded, convex, or flush profile rather than left rough. It may also appear as a shorthand in procedure specs for root diameter or rotary drive configurations depending on the context.

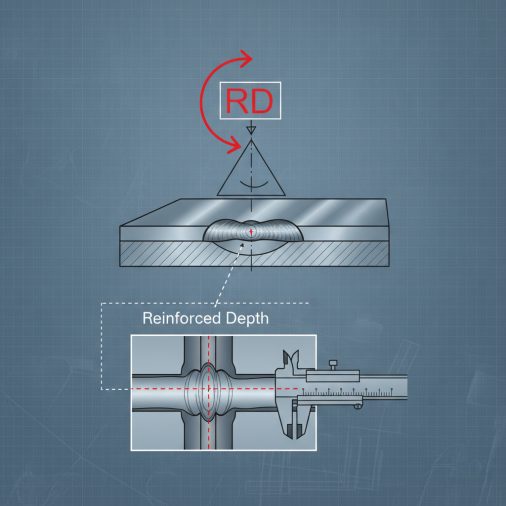

What “RD” Actually Means on a Weld Drawing

The meaning of RD depends heavily on where you see it. Context is everything. In standard AWS (American Welding Society) weld symbol notation, contour symbols appear above or below the reference line. A rounded contour is sometimes abbreviated as RD alongside a convex arc symbol to indicate the weld face should be finished smooth and rounded — typically with a grinder, file, or by technique. On engineering drawings and fabrication blueprints, RD may also indicate: – Root diameter — relevant when welding around pipe or cylindrical components – Round bar or rod — describing the base material shape being welded – Rotary drive — in automated MIG welding setups referencing drive roller types If you see “RD MIG” in a procedure document or traveler sheet, it almost always refers to either a rounded bead profile requirement or a rotary drive MIG welding process used in automated pipe welding.

Rounded Weld Profile in MIG Welding

When a rounded or convex contour is specified for a MIG weld, it means the finished bead should curve outward slightly rather than being flat or concave. This matters more than most beginners realize. A weld that looks visually rounded doesn’t automatically pass — the profile needs to be intentional, consistent, and within spec. If a rounded contour is called out, the weld face should not be undercut, sunken, or excessively convex beyond what the drawing permits. Why a rounded profile gets specified: – Provides slightly more weld material on top, adding reinforcement – Preferred on certain structural welds where flush grinding isn’t required – Reduces stress concentration compared to abrupt flat transitions in some joint configurations – Easier to achieve with a natural MIG bead without post-weld grinding In practice, a well-executed MIG bead on flat or horizontal position naturally produces a slightly convex, rounded profile when wire feed speed and voltage are balanced correctly. knowing what a good MIG weld looks like is the fastest way to judge whether your profile is within acceptable range before any inspection.

Rotary Drive (RD) MIG Welding Explained

In automated and semi-automated welding systems, RD MIG often refers to a rotary drive MIG setup. This is common in pipe welding, pressure vessel fabrication, and high-production environments. In this configuration, the workpiece or the welding head rotates during the weld pass. The MIG torch remains stationary while the component turns, or in some configurations, a welding head travels around a fixed pipe using a rotary drive mechanism. Key characteristics of rotary drive MIG welding: – Consistent travel speed across the entire weld joint – Reduced operator fatigue and human variation – Better repeatability for production runs – Often paired with wire feeders rated for continuous operation The Lincoln Electric NA-3 or similar automated wire feeders are commonly used in rotary drive MIG setups where weld quality and deposition rate consistency are critical. These systems are generally paired with a constant voltage power source and programmable parameters.

How to Achieve a Proper Rounded Bead Profile Manually

If you’re welding to a spec that calls for a rounded contour — not automated, just manual MIG — here’s how to produce it consistently. 1. Set voltage slightly higher than minimum threshold A slightly higher voltage setting produces a wider, more fluid puddle that naturally crowns into a rounded profile. Too low and you get a ropey, narrow bead. 2. Keep travel speed moderate and steady Moving too fast produces a thin, flat bead. Moving too slowly piles up material into an overly convex lump. Aim for a pace where the puddle stays about twice the diameter of the wire being used. 3. Maintain consistent stick-out For most MIG welding, 3/8 to 1/2 inch of contact tip to work distance works well. Inconsistent stick-out directly affects arc voltage and alters your bead profile mid-pass. 4. Use a slight weave or pause at the edges On wider joints, a gentle weave with a brief pause at each side allows the puddle to fill properly and form a smooth, rounded crown rather than a peaked centerline. 5. Check your wire feed speed Too much wire feed relative to voltage creates an overly convex, stubby bead. Balance wire feed speed with voltage to achieve a smooth, consistent rounded profile. If you’re welding in a vertical position, producing a controlled rounded profile becomes significantly harder. welding vertical MIG passes correctly requires specific technique adjustments to keep the profile controlled against gravity.

Shielding Gas Considerations for Profile Quality

Gas selection directly influences bead shape and profile. This is often overlooked when trying to hit a specific contour requirement.

Gas Mix	Bead Profile Tendency	Best Use
75% Ar / 25% CO₂ (C25)	Slightly convex, smooth	Mild steel general fabrication
100% CO₂	More convex, rougher surface	Deep penetration, structural
90% Ar / 10% CO₂	Flatter, wider	Thin material, sheet metal
98% Ar / 2% CO₂	Very smooth, controlled	Stainless steel applications

C25 (75/25 argon-CO₂) is the most common choice for mild steel MIG welding and naturally produces a rounded bead profile that’s easy to control. If your weld spec calls for a rounded contour, C25 makes achieving it more predictable than straight CO₂.

Common Mistakes When a Rounded Profile Is Required

Overbuilding the crown — Some welders add too much material thinking a bigger bead means better reinforcement. Excessive convexity creates stress risers at the toes of the weld and may actually fail inspection if it exceeds the drawing tolerance. Grinding incorrectly — If post-weld grinding is needed to achieve the specified contour, grinding too aggressively removes reinforcement and can introduce grinding marks that become stress concentration points, especially on stainless or high-strength steel. Ignoring joint preparation — A clean, properly fit-up joint is the foundation of any controlled bead profile. Gaps, misalignment, and contamination all disrupt how the puddle flows and solidifies. Confusing contour symbols — On a weld symbol, a flat line indicates a flush finish, a concave arc means a concave contour, and a convex arc means a rounded profile. Misreading these leads to welding the wrong profile from the start.

When Root Diameter (RD) Matters in MIG Pipe Welding

In pipe welding documentation, RD sometimes refers to root diameter — the inner bore diameter at the joint. This measurement determines how the root pass is planned and whether a backing ring or open root technique is used. For MIG pipe welding without a backing ring, root diameter tolerances directly affect how much of the root pass penetrates through. A tighter root gap paired with the correct root diameter spec ensures the root bead fuses properly on the inside of the pipe without blowing through. When welding exhaust pipe with a MIG welder, RD awareness becomes practical — thin-wall exhaust tubing has little room for error in root pass penetration, and understanding the root diameter helps you select the right amperage and wire diameter for the job.

FAQ

What does RD mean on a MIG weld symbol? RD on a weld symbol typically refers to a rounded or convex contour specification for the finished weld face. It tells the welder that the bead profile should curve outward rather than be flat or concave. In some fabrication documents, RD may also stand for root diameter or rotary drive depending on the application context. What is the difference between a convex and a flush weld profile? A convex (rounded) profile means the weld face curves outward beyond the base metal surface, adding extra reinforcement material. A flush profile means the weld is ground or finished level with the surrounding base metal. Convex profiles are faster to produce but may require grinding if the spec calls for flush. Rounded profiles distribute stress differently than flush ones, which matters in fatigue-loaded applications. Does a rounded bead profile mean a stronger weld? Not necessarily. A rounded profile provides slightly more weld material, which can improve static load capacity. However, excessive convexity can actually reduce fatigue strength by creating stress concentrations at the weld toes. A properly balanced, moderately rounded bead within spec tolerances performs best across most applications. Can wire diameter affect the MIG weld profile? Yes. Smaller diameter wire, such as 0.023 or 0.030 inch, produces a narrower, more focused arc suited for thin material. Larger wire like 0.035 or 0.045 inch deposits more material and creates a wider bead. Matching wire diameter to material thickness and joint size is one of the most effective ways to control bead geometry and profile shape. What causes a MIG weld bead to be too convex or peaked? The most common causes are excessive wire feed speed relative to voltage, insufficient travel speed, or incorrect shielding gas. When wire feed speed is too high compared to the heat input, material piles up faster than the puddle can flow flat. Increasing voltage slightly, reducing wire feed, or increasing travel speed usually corrects a peaked, over-convex bead. How is RD MIG welding used in industrial pipe fabrication? In industrial pipe fabrication, RD MIG typically refers to a rotary drive welding system where the pipe rotates on a positioner while the welding torch remains in a fixed, optimized position. This keeps the welding in the flat or slightly overhead position throughout the pass, improving consistency and reducing defect rates compared to manual all-position welding. Does shielding gas affect whether I can achieve a rounded weld profile? Yes, significantly. Higher argon content mixtures produce smoother, more fluid puddles that flow and crown naturally into a rounded profile. Higher CO₂ content produces more spatter and a stiffer puddle that may be harder to control into a clean rounded contour. For spec work requiring a rounded profile, a C25 (75% argon / 25% CO₂) mix is a reliable starting point on mild steel.

Whether you’re reading RD on a weld drawing or setting up a rotary drive MIG system, understanding what the specification actually requires prevents costly rework and failed inspections. Match your gas, wire size, and parameters to the profile requirement, verify your bead contour before final inspection, and don’t confuse a visually appealing bead with one that meets the dimensional callout on the drawing.
